Do you have to connect a ground wire? Yes, absolutely. Connecting the ground wire is a critical safety step for most electrical fixtures and appliances. It protects you from electric shock by providing a safe path for electricity to flow in case of a fault, preventing dangerous surges from reaching you.
Ever looked at an electrical outlet or a light fixture and seen those three holes or wires, wondering what they’re all for? It can seem a bit confusing, especially when you’re just starting out with DIY home projects. You might be staring at a new lamp or a ceiling fan, ready to install it, and then you see that extra wire – the green or bare copper one. The big question pops into your head: “Do I really need to connect this ground wire?” It’s a common question, and one that’s super important for keeping your home and yourself safe. Don’t worry, I’m here to break it down in a way that’s easy to understand. We’ll go through exactly why that little wire is so vital and how to make sure it’s connected properly for peace of mind. Let’s get started on making your home safer, one wire at a time!
Understanding the Three Wires: Hot, Neutral, and Ground
Before we dive deep into the ground wire, let’s quickly get familiar with its buddies: the hot wire and the neutral wire. Think of your electrical system like a team working together to bring power to your devices. Each wire has a specific job.
- The Hot Wire (Black or Red): This is the wire that carries the electricity from the power source. It’s like the main delivery truck bringing the power right to your device. It’s the one with the electrical “oomph.”
- The Neutral Wire (White): This wire provides the return path for the electricity. After the power has done its job in your device, it flows back through the neutral wire to complete the circuit. It’s like the return route for the delivery truck.
- The Ground Wire (Green or Bare Copper): This is our special safety wire. It’s not part of the normal flow of electricity when everything is working correctly. Its sole purpose is to act as an emergency exit for electricity if something goes wrong.
Most modern electrical systems, especially those installed after the 1960s, use a three-wire system. You’ll see this in your wall outlets (the ones with three slots) and in the wiring for many appliances and light fixtures. Older homes might have a two-wire system, but for safety, it’s always best to upgrade to a grounded system if possible.
What Exactly is a Ground Wire and Why is it So Important?
So, what makes this ground wire so special? Imagine your toaster. It’s designed to work perfectly with the hot and neutral wires. But what happens if, for some reason, the internal wiring inside the toaster gets damaged, and a live hot wire touches the metal casing of the toaster? If you were to touch that metal casing, the electricity would find an easy path through your body to the ground, and that could be very dangerous, potentially causing a severe shock or electrocution. This is where the ground wire saves the day!
The ground wire is connected to the metal casing of your appliance or fixture and runs all the way back to your electrical panel. From there, it’s connected to the grounding system of your home, which ultimately connects to the earth itself. If that faulty hot wire touches the metal casing, instead of waiting for you to touch it, the electricity will immediately flow through the ground wire. Because the ground wire offers a much lower resistance path than your body, it directs the electricity safely away, preventing you from getting shocked. It’s like having a dedicated emergency lane for electricity.
This connection also helps to trip your circuit breaker or blow a fuse. When a large surge of electricity flows through the ground wire, it causes a significant electrical imbalance. This imbalance is detected by your circuit breaker, which then quickly shuts off the power to that circuit, stopping the flow of electricity before it can cause harm. It’s a crucial safety net that’s often overlooked but incredibly effective.
When Do You HAVE To Connect a Ground Wire?
The short answer is: if your fixture, appliance, or outlet is designed to be grounded, you must connect the ground wire. This is usually indicated by a few things:
- Three-Prong Plugs: Any appliance or tool with a three-prong plug has a ground wire built into its cord. The third prong is specifically for the ground connection.
- Metal Casings: Appliances and fixtures with metal casings (like many kitchen appliances, power tools, and metal light fixtures) are typically designed to be grounded.
- Outlet Type: If you’re wiring to a three-slot (grounded) outlet, the circuit should be grounded, and any device connected should utilize that ground.
- Manufacturer Instructions: The installation manual that comes with your new fixture or appliance will explicitly state if grounding is required. Always follow these instructions.
The National Electrical Code (NEC) in the United States, and similar codes in other countries, mandate grounding for safety. For instance, the NEC requires grounding for:
- Electrical systems in kitchens and bathrooms.
- All branch circuits supplying outlets and fixed equipment.
- Receptacles in unfinished basements, garages, and outdoors.
You can find more detailed information on grounding requirements from reputable sources like the National Fire Protection Association (NFPA), which publishes the NEC.
When Might a Ground Wire NOT Be Present (and What to Do)
It’s important to understand that not all electrical devices require a ground wire, though they are becoming less common. Older homes, in particular, might have two-wire systems (just hot and neutral) in some areas. Here’s when you might encounter a situation without a ground wire and what to consider:
- Two-Prong Outlets: If your existing outlets only have two slots, they are likely ungrounded. This means the wiring in that part of your home does not include a ground wire.
- Double-Insulated Tools/Appliances: Some tools and appliances are designed with a special double insulation system. These devices are built with extra layers of protection so they don’t require a ground connection. They are usually marked with a symbol of two nested squares.
- Older, Non-Metallic Fixtures: Very old, lightweight fixtures made entirely of plastic or other non-conductive materials might not have been designed with a ground connection point.
What to Do if You Don’t Have a Ground Wire Available:
If you’re installing a new fixture that requires grounding, but your home’s wiring doesn’t have a ground wire available at that location, do not simply ignore the ground wire. This is a common mistake that compromises safety. Here are the proper steps:
- Assess the Situation: First, confirm that there is no ground wire present in the electrical box. Sometimes, a ground wire might be present but not connected.
- Consult an Electrician: The safest and most recommended course of action is to hire a qualified electrician. They can assess your home’s wiring and determine the best way to add a grounding system. This might involve running new wires, using a ground rod, or other specialized solutions.
- Consider GFCI Protection: In situations where adding a ground wire is difficult or prohibitively expensive, a Ground Fault Circuit Interrupter (GFCI) outlet can provide a significant level of protection against electric shock. GFCIs monitor the flow of electricity and shut off power almost instantly if they detect an imbalance, similar to how a ground wire works. A GFCI outlet can be installed even on ungrounded circuits, offering enhanced safety for specific locations like bathrooms and kitchens. However, this is a workaround, not a replacement for proper grounding where it’s required.
- Do NOT Use a Cheater Plug: Never use a “cheater plug” or adapter that allows you to plug a three-prong plug into a two-prong outlet without properly grounding the adapter. This defeats the purpose of the ground wire and leaves you unprotected.
For DIYers, tackling the addition of a grounding system can be complex and potentially hazardous if you’re not experienced. It’s often best left to the professionals to ensure it’s done correctly and safely according to electrical codes.
How to Connect a Ground Wire: A Step-by-Step Guide
Assuming you have a grounded electrical box and a fixture that requires a ground connection, here’s how you typically connect that green or bare copper wire. Remember, always turn off the power to the circuit at your breaker box before starting any electrical work!
Tools You’ll Need:
- Wire strippers
- Screwdriver (Phillips head and/or flat head, depending on your screws)
- Pliers
- Voltage tester (non-contact or multimeter)
- Wire nuts (appropriate size for your wires)
- Electrical tape (optional, for added security)
Step-by-Step Connection Process:
- Turn Off Power: Locate your home’s electrical panel and find the breaker that controls the circuit you’ll be working on. Flip it to the “OFF” position. If your breakers aren’t labeled, you might need to test a light or outlet to confirm which one it is. It’s also a good practice to put a piece of tape over the breaker to prevent someone from accidentally turning it back on.
- Verify Power is Off: Use your voltage tester to confirm that there is no power at the outlet or in the electrical box you’re working with. Touch the tester to the wires or inside the slots of the outlet. If it beeps or lights up, the power is still on – go back to step 1.
- Identify the Ground Wires: In the electrical box, you should find a green or bare copper wire. This is your incoming ground wire from the circuit. You might also see a ground wire coming from the fixture or appliance you are installing.
- Prepare the Wires: If the ends of the ground wires are not already stripped, use your wire strippers to remove about 1/2 to 3/4 inch of insulation from the ends.
- Connect the Wires:
- Method 1: Using a Pigtail (Most Common):
- Take a short piece of ground wire (about 6 inches long, same gauge as your circuit ground wire). This is called a “pigtail.” Strip about 3/4 inch of insulation from both ends of the pigtail.
- Take the incoming ground wire from the electrical box and the end of your pigtail. Twist them together clockwise using pliers.
- Secure the twisted wires with an appropriately sized wire nut. Give it a gentle tug to ensure it’s secure.
- Now, take the other end of your pigtail and the ground wire from your fixture/appliance. Twist these together clockwise with pliers and secure with another wire nut.
- Method 2: Direct Connection (Less Common, Depends on Box):
- Some electrical boxes have a built-in grounding screw (usually green). If so, you can loop the incoming ground wire from the box around this screw clockwise and tighten it.
- Then, loop the ground wire from your fixture/appliance around the same screw, or connect it to the incoming ground wire using a wire nut if the box allows.
- Method 1: Using a Pigtail (Most Common):
- Secure the Ground Screw (if applicable): If your fixture has a dedicated green ground screw, loop the end of the ground wire (either directly from the fixture or from the pigtail) around this screw clockwise and tighten it firmly.
- Neatly Tuck Wires: Gently fold the wires back into the electrical box. Ensure that the ground wires are tucked in securely.
- Complete Installation: Finish installing your light fixture, outlet, or appliance according to its specific instructions.
- Restore Power: Once everything is installed and secured, go back to the electrical panel and flip the breaker back to the “ON” position.
- Test: Turn on your light or appliance to ensure it’s working correctly.
Ground Wire Color Coding:
Understanding wire colors is crucial for electrical safety. Here’s a quick reference:
| Wire Color | Function | Typical Voltage |
|---|---|---|
| Black | Hot (Live) | 120V |
| Red | Hot (Live) – often used for switches or in 240V circuits | 120V or 240V |
| White | Neutral | 120V |
| Blue | Hot (Live) – often used in switch loops or for specific applications | 120V |
| Yellow | Hot (Live) – often used in switch loops or for specific applications | 120V |
| Green or Bare Copper | Ground (Safety) | N/A (does not carry current normally) |
Important Note: While these are the most common color codes in North America, always verify with a voltage tester. Older wiring may not follow these standards, and in some specific applications or regions, colors can vary.
Common Mistakes to Avoid When Grounding
Even with the best intentions, it’s easy to make mistakes when dealing with electricity. Here are some common pitfalls to watch out for:
- Ignoring the Ground Wire: This is the most dangerous mistake. If a fixture is designed to be grounded, don’t skip it just because it’s inconvenient or you’re in a hurry.
- Connecting Ground to Neutral: Never connect the ground wire to the neutral wire in an outlet or junction box. This creates a dangerous condition where the metal casing of your appliance could become energized if the neutral wire fails. The ground wire should only connect to other ground wires or a grounding screw/terminal.
- Using the Wrong Size Wire Nuts: Wire nuts come in different sizes for different numbers and gauges of wires. Using a wire nut that’s too small won’t create a secure connection, while one that’s too large might not grip the wires tightly enough.
- Not Turning Off Power: Always, always, always turn off the power at the breaker box and verify with a voltage tester before touching any wires.
- Loose Connections: A loose wire nut or a screw terminal that isn’t tight can lead to intermittent power, overheating, and potential fire hazards. Tug gently on your connections to ensure they are secure.
- Damaging Wires: Be careful not to nick or cut the wires when stripping insulation. Damaged wires can be a source of electrical problems and safety hazards.
- Assuming Old Wiring is Safe: If you have an older home with a two-wire system, it’s best to have it inspected by a qualified electrician. Trying to “retrofit” grounding without understanding the existing system can be dangerous.

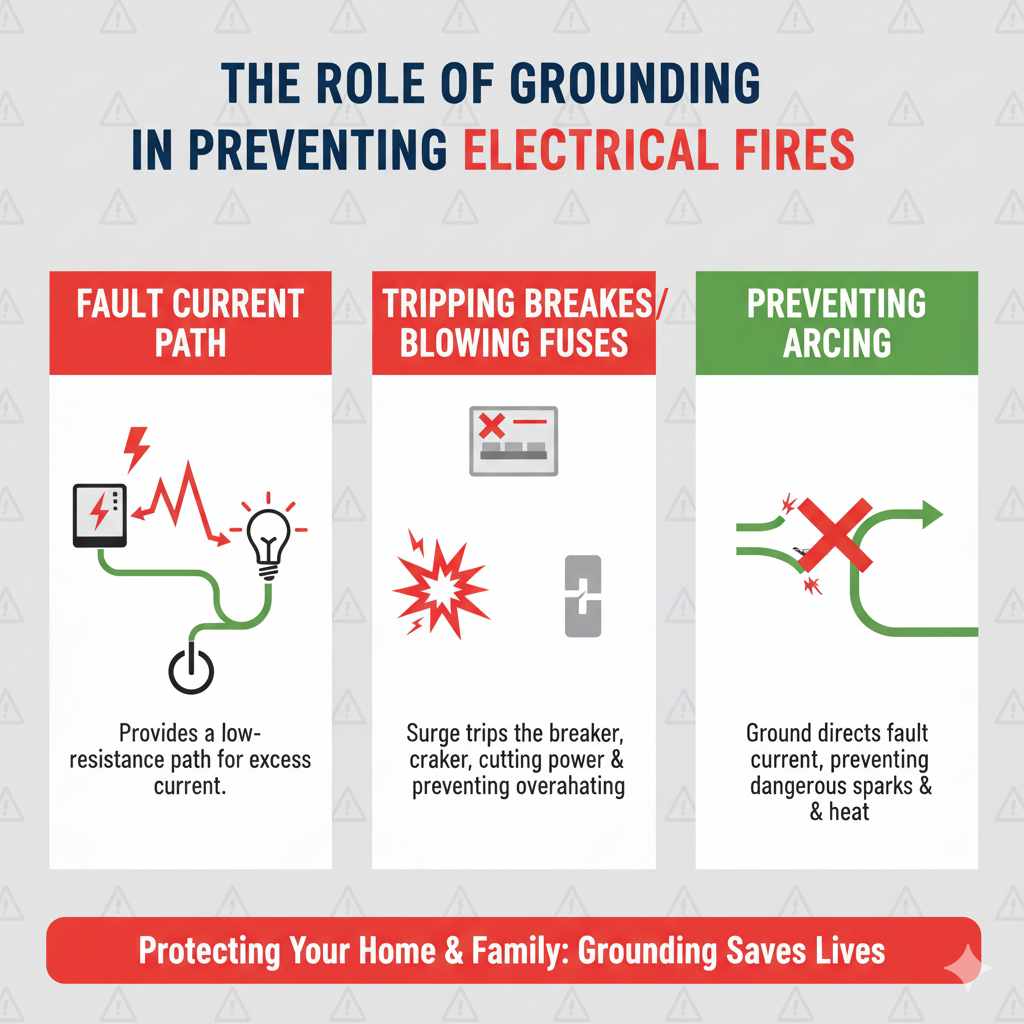

The Role of Grounding in Preventing Electrical Fires
Electrical issues are a leading cause of house fires. The grounding system plays a vital role in preventing these fires. Here’s how:
- Fault Current Path: As we’ve discussed, the ground wire provides a low-resistance path for fault current. If a hot wire accidentally touches the metal casing of an appliance, the large surge of current flows directly to ground.
- Tripping Breakers/Blowing Fuses: This surge of current is what causes the circuit breaker to trip or a fuse to blow. This action immediately cuts off the power, stopping the flow of electricity that could potentially overheat wires and ignite surrounding materials. Without a proper ground, the fault current might not be large enough to trip the breaker, allowing the faulty connection to remain energized and potentially overheat.
- Preventing Arcing: Loose connections or faulty wiring can create electrical arcs. These arcs generate intense heat and sparks, which can easily ignite dust, insulation, or other combustible materials within walls or electrical boxes. A well-grounded system helps to prevent these dangerous arcing conditions by ensuring that any fault current is quickly directed to ground.
- Static Electricity Dissipation: While less common for household appliances, in some sensitive electronic equipment or industrial settings, grounding helps to dissipate static electricity, which can cause damage to components or even ignite flammable vapors.
According to the National Fire Protection Association (NFPA), electrical distribution, lighting, and power equipment are involved in a significant percentage of reported home fires. Ensuring your electrical system, including proper grounding, is up to code is one of the most effective ways to prevent such tragedies.
Frequently Asked Questions (FAQ)
Q1: Do I need to connect the ground wire for a light fixture in my living room?
A: If the light fixture has a metal casing or is designed with a ground wire connection point (usually a green screw or a green/bare wire), then yes, you should connect it. Most modern fixtures, especially those with metal parts, are designed for grounding to enhance safety.
Q2: My old house only has two wires (black and white) at the outlet. What should I do if I want to install a new appliance that has a ground wire?
A: If your home’s wiring doesn’t have a ground wire available, you have a few options. The safest is to hire a qualified electrician to run new, grounded wiring to that location. Alternatively, you can install a GFCI (Ground Fault Circuit Interrupter) outlet, which provides shock protection even on ungrounded circuits. Never try to connect the ground wire to the neutral wire or simply leave it disconnected.
Q3: What’s the difference between a ground wire and a neutral wire?
A: The neutral wire is part of the normal circuit, providing a return path for electricity. The ground wire is a safety wire; it’s not supposed to carry current during normal operation. Its job is to provide a safe path for electricity to flow away if there’s a fault, preventing shocks and fires.
Q4: Can I use a wire nut to connect the ground wire from my appliance to the ground wire in the wall?
A: Yes, using an appropriately sized wire nut is the standard and correct way to connect ground wires together, often with a short “pigtail” wire that then connects to the appliance or fixture’s ground screw.
Q5: What if my light fixture only has a ground wire and no hot or neutral wires (e.g., a simple metal canopy)?
A: This is unlikely for a functional light fixture. If you are referring to a fixture that is meant to be hardwired, it will have hot and neutral connections for power. The ground wire is always an additional safety connection. If you have a fixture that seems to only have a ground wire, please double-check its design and manufacturer’s instructions carefully, as it might be a component of a larger system or a misunderstanding of its function.
Q6: Is it okay to connect the ground wire to a metal electrical box?
A: Yes, in many cases, metal electrical boxes are designed to be grounded. If the metal box is properly bonded to the building’s grounding system (usually via a grounding screw or a metal conduit), then connecting the ground wire from your fixture to the box’s grounding screw or to other ground wires in the box will effectively ground the fixture.
Q7: How do I know if my appliance is “double-insulated” and doesn’t need grounding?
A: Double-insulated tools and appliances will have a symbol on them that looks like two concentric squares. They are designed with extra layers of insulation, so they do not require a grounding connection. If you don’t see this symbol, and the appliance has a metal casing or a three-prong plug, it needs to be grounded.
Conclusion: Safety First, Always
So, do you have to connect the ground wire? In almost all cases where a ground wire is present and the fixture or appliance is designed for it, the answer is a resounding yes! That green or bare copper wire is your home’s silent guardian, an essential safety feature designed to protect you and your family from the dangers of electrical faults. It’s not just a recommendation; it’s a critical component of a safe electrical system, mandated by safety codes for good reason.
Understanding the role of the ground wire, knowing when it’s required, and learning how to connect it properly are fundamental skills for any DIY homeowner. By taking the time to ensure your electrical connections are secure and grounded, you’re not just completing a project; you’re investing in the safety and integrity of your home. Remember to always turn off the power before you start, double-check your work, and if you ever feel unsure, don’t hesitate to call a qualified electrician. Your peace of mind is worth it. Happy (and safe) DIYing!
