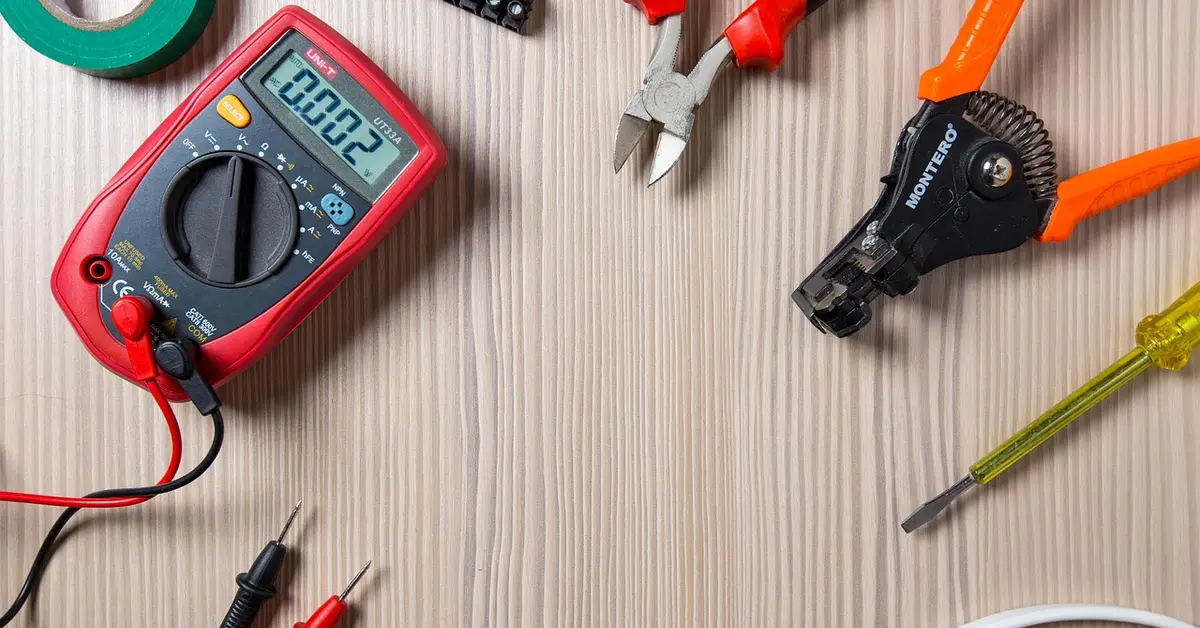

How Does a Voltage Tester Work?

A voltage tester works by detecting the presence of electricity, either by sensing the electric field around a live wire without touching it, or by completing a small circuit through contact probes and reading the current that flows. This guide covers the two main types, what happens inside them, and the safety limits every user needs to understand before trusting one near live wiring.

Non-Contact vs. Contact Voltage Testers

A non-contact voltage tester (NCVT), the pen-shaped tool most homeowners own, never touches a bare conductor. Its tip houses a small antenna that picks up the alternating electric field surrounding an energized wire, even through insulation, a wall switch plate, or thin drywall. Contact testers, by comparison, require both probes to physically touch the circuit. A two-pole solenoid tester (“wiggy”) or a neon test light completes a real circuit and draws a small current, which is why they can confirm actual voltage presence more reliably than a field-sensing pen.

What Happens Inside a Non-Contact Tester

Inside the tip, a high-impedance amplifier circuit picks up the tiny AC signal induced by the nearby field and boosts it enough to trigger an LED and a small buzzer or vibration motor. Many models include a sensitivity dial or a low/high mode switch, since a very sensitive setting can pick up stray fields from adjacent cables in a crowded panel, while a low setting is meant for close-range checks like probing directly into an outlet slot. The circuit runs off a coin cell or AAA battery, and most units have a self-test button that should light up on demand, confirming the battery and circuit are still functional.

Limitations You Need to Know

Non-contact testers can give false negatives inside metal conduit or a grounded metal junction box, since the shielding blocks the electric field from reaching the sensor. They can also give false positives, lighting up from an adjacent live wire bundled in the same cable even when the wire you’re actually touching is dead. Neither type tells you the actual voltage level or whether a circuit is 120V or 240V; they only confirm presence or absence of voltage at that moment.

How to Use One Safely

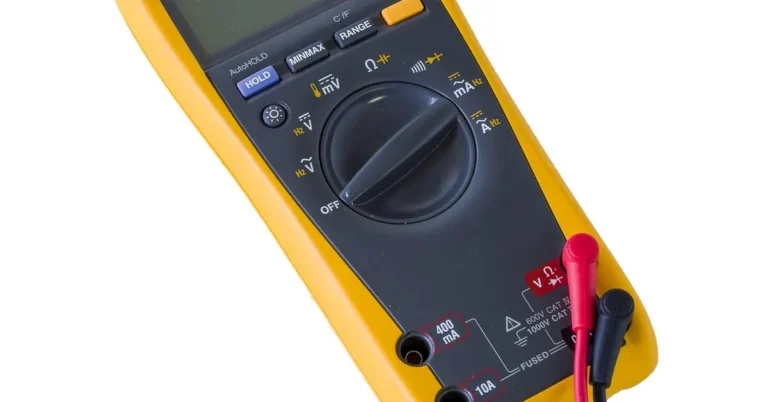

Follow the same three-step test electricians use: test the tester on a circuit you know is live, test the target circuit, then test the tester again on the known-live circuit to confirm it didn’t fail mid-check. Never rely on a single non-contact reading alone before working on wiring; verify with a contact-type tester or multimeter, and treat every wire as live until you’ve confirmed otherwise twice.

Frequently Asked Questions

Can a voltage tester detect DC voltage?

Standard non-contact testers are built to sense the alternating electric field from AC power and generally cannot detect DC voltage, since DC doesn’t produce the oscillating field the sensor relies on. Testing DC systems like solar arrays or vehicle wiring requires a contact tester or multimeter rated for DC.

Why does my tester beep near an outlet that’s supposedly off?

This usually means the breaker you switched off doesn’t actually control that outlet, or the tester is picking up field bleed from a neighboring live wire in the same box or cable run. Confirm with a contact tester before assuming the circuit is truly dead.

Do voltage testers expire or wear out?

The battery and internal sensor circuit can degrade over time, and dropped units are especially prone to failure. Always press the self-test button before each use, and replace the tester if it fails a self-test or shows inconsistent readings on a known-live source.
