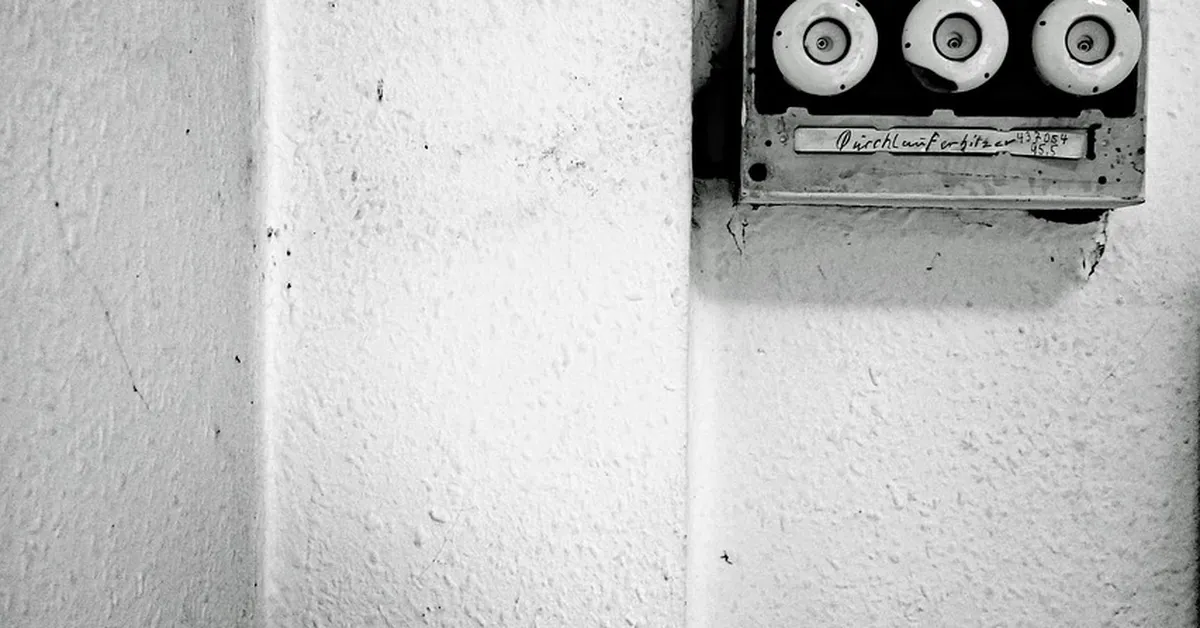

Immersion Heater Fuse Keeps Blowing: What It Can Mean

An immersion heater fuse that keeps blowing is rarely a fuse problem by itself; it’s usually a sign that the element has an insulation breakdown, the thermostat is faulty, or the circuit has the wrong fuse rating for the element’s wattage. This guide covers the specific causes worth checking and which ones cross the line into a job for a qualified electrician.

A failing element is the most common cause

An immersion element sits directly in the water inside the cylinder, and over years of use, especially in hard-water areas, mineral scale builds up on the sheath and can eventually crack or corrode it, letting water reach the internal heating wire and create a short or earth leakage. A megger or insulation resistance test between the element’s live pins and its earth tag can confirm this: a healthy element reads near infinite resistance, while a failing one reads very low. A typical 3kW element draws around 13A on a 230V circuit, so it’s normally wired on its own dedicated fused spur precisely because that load is significant and constant.

Thermostat faults

Older cylinders often use a traditional rod-style thermostat that can develop stuck or shorted contacts over time, letting the element draw current abnormally or fail to cut off at the set temperature, which stresses the circuit and the fuse over repeated cycles. A newer digital thermostat is less prone to this specific failure mode.

Wrong fuse rating or a loose connection

Immersion circuits need a fuse or breaker matched to the element’s actual wattage, commonly in the 13A to 16A range depending on the element size; an undersized fuse will nuisance-trip on the element’s normal steady load even when everything else is healthy. A loose terminal connection inside the heater’s junction box, usually hidden under an insulated cap on top of the cylinder, can also arc intermittently and trip the circuit without the element itself being at fault.

Why an RCD trip is more serious than a simple fuse blow

Because the element operates submerged in water at mains voltage, a trip on an RCD or earth-fault-type breaker specifically, rather than a plain overcurrent fuse, points toward current leaking to earth through a breach in the element sheath. That’s a genuine shock and fire risk, not something to keep resetting and running again. It’s the same category of concern worth ruling out first any time general water heater troubleshooting turns up an electrical fault rather than a simple thermostat setting.

Frequently Asked Questions

Is it normal for an immersion heater to trip an RCD once?

An occasional trip, especially on a brand-new element, can sometimes be a minor nuisance fault, but a repeated trip is not normal and should be investigated with an insulation resistance test before continuing to use the heater.

Can a scaled-up element cause the fuse to blow?

Yes. Heavy scale buildup on the element sheath can eventually crack it or trap heat against the wire in a way that damages the insulation, leading to a short or earth leakage that trips the circuit.

How do you safely test an immersion element yourself?

With the power fully isolated, a multimeter can check resistance between the element’s live pins and its earth tag; a very low reading indicates a failed element. Anyone unfamiliar with isolating the circuit safely first should leave this test to an electrician.
