How Do Pin Fasteners Work? 4 Types Explained Simply
Pin fasteners hold parts together by inserting a cylindrical or tapered pin through aligned holes, relying on friction, shear strength, or a locking wire instead of threads. A worn or wrong-size pin can shear under load, causing the exact wobble or slip it was meant to prevent. This guide covers the 4 main types (cotter, clevis, dowel, spring), the best material for each job, and how to install and maintain them.
Types Of Pin Fasteners

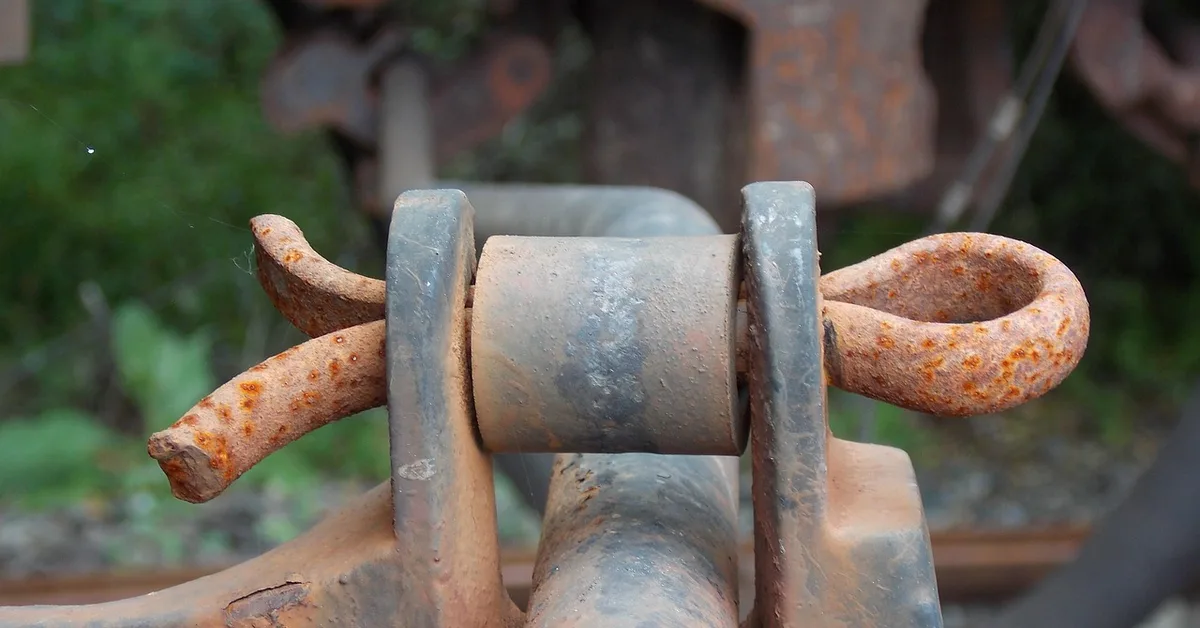

Cotter pins are simple but effective. They have two bent legs. One leg is longer than the other. You insert them into a hole. Then, you bend the legs to hold them in place. They stop things from moving. Perfect for machinery and tools.
Clevis pins have a round head and a hole at the other end. They are used with a cotter pin to lock them. Clevis pins connect parts that need to move. They are strong and reliable.
Dowel pins are cylindrical rods. They are used to align two parts. They fit tightly into holes. This helps in keeping parts stable. Ideal for furniture and machines. They are precise and strong.
Spring pins are also called tension pins. They are flexible and can compress. They fit into holes tightly. Spring pins hold parts together well. Useful in cars and electronics. They absorb shock and vibration.
Materials Used
Steel is strong and durable. It holds heavy objects well. Rust can be an issue with steel. Coating helps protect it from rust.
Brass looks shiny and golden. It is used for its appearance. Brass is resistant to corrosion. It is not as strong as steel.
Aluminum is lightweight. It does not rust easily. Flexible and easy to mold. It is less strong than steel.
Plastic is used for light tasks. It is cheap and easy to make. Not strong like metal. Waterproof and doesn’t rust.
Best Cotter Pin Kit Pick
Seept 120Pcs Cotter Pin Assortment Kit – $5.98
304 stainless steel matches the corrosion-resistant material this guide recommends for fighting rust, and 12 common sizes cover a wobbly hinge or a loose machinery part without a special order.
- Best for: Machinery repairs, hitch pins, quick hinge fixes
- Why we picked it: Stainless steel resists the rust this guide warns about, 12 sizes in one box
- Main drawback: Cotter pins will not substitute for spring or dowel pins in precision alignment jobs
Compare more pin fastener options
 Option 1 Eoppen 220Pcs Cotter Pin Kit (13 Sizes) – $9.99
|
 Option 2 Eoppen 230Pcs Roll Pin (Spring Pin) Set – $9.99
|
 Option 3 Rustark 300Pcs Dowel Pin Kit – $8.99
|
