I love a well-lit room. A few years ago, my garage had dim, flickering fluorescent bulbs. They buzzed like angry bees and took forever to turn on. I switched to LED bulbs, and it was like magic—bright light, no noise, and lower bills! In this guide, I’ll show you how to change fluorescent bulbs to LED. It’s easy, saves money, and makes your space shine. Whether you’re a beginner or a lighting pro, I’ll walk you through every step with simple tips and tricks.
What Are Fluorescent and LED Bulbs?
Fluorescent bulbs are long tubes filled with gas. They use a ballast to control electricity and light up. But they flicker, hum, and contain mercury, which isn’t safe. LED bulbs use tiny diodes to make light. They’re brighter, last longer, and save energy. Switching to LEDs is smart for your wallet and the planet.
Why Change Fluorescent Bulbs to LED?
LEDs are better than fluorescent bulbs in many ways. They use less electricity, which cuts your bills. They last up to 50,000 hours, while fluorescent bulbs last about 10,000 hours. LEDs don’t flicker or hum, so your room feels calm. Plus, they’re safer—no mercury! I switched my kitchen lights to LEDs, and it’s now my favorite spot to cook.

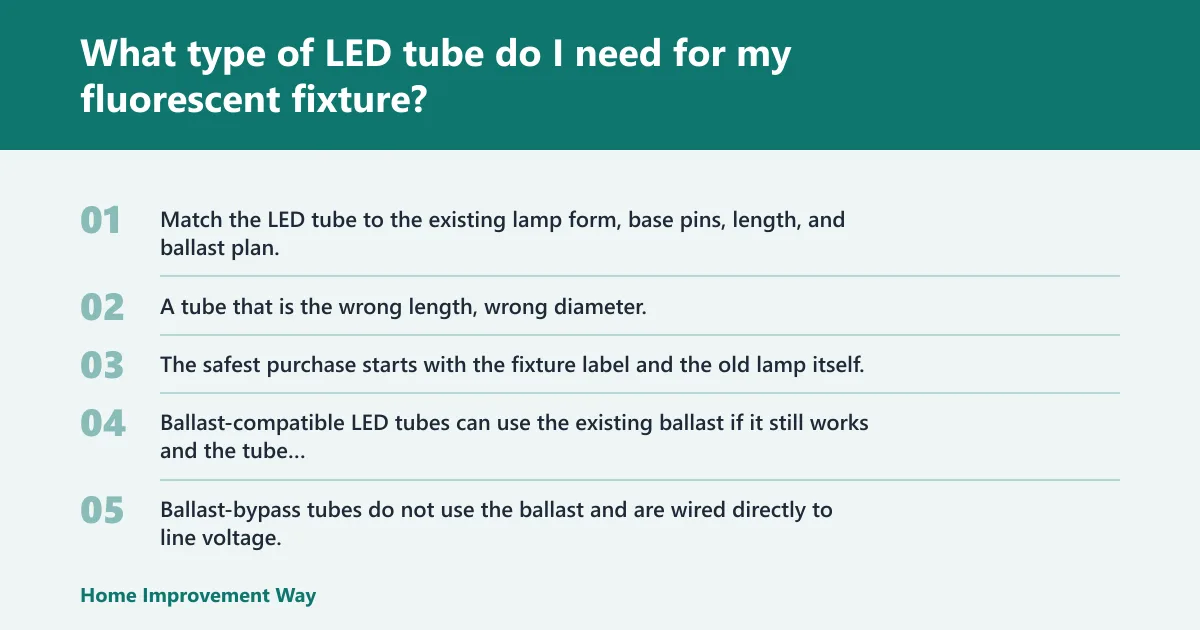

Types of LED Tubes There are three main types of LED tubes for replacing fluorescent bulbs:
- Type A (Plug-and-Play): These fit into existing fixtures with a ballast. They’re super easy to install.
- Type B (Ballast Bypass): You remove the ballast and wire directly to power. It’s more work but saves energy.
- Type A/B (Hybrid): These work with or without a ballast. They’re flexible but cost more.
Each type fits common tube sizes like T8 (1-inch diameter) or T12 (1.5-inch diameter). Check your bulb’s label to pick the right one.
Tools and Materials You Need
You don’t need much to switch to LEDs. Here’s what I use:
- LED tubes: Match the size (e.g., 4ft T8) and color (e.g., 4000K for cool white).
- Screwdriver: To open the fixture.
- Wire cutters (for Type B): To bypass the ballast.
- Non-shunted tombstones (for Type B): These hold the bulb securely.
- Voltage tester: To check the power is off.
- Dummy starter (for some Type A): Replaces the fluorescent starter.
I buy my LED tubes from trusted brands like Philips or GE. Check Energy Star for certified bulbs.
How to Change Fluorescent Bulbs to LED
Here’s my step-by-step guide to swap fluorescent bulbs for LEDs. I’ll cover both Type A and Type B methods.
Step 1: Turn Off the Power
Safety first! Go to your breaker box and switch off the power to the fixture. Use a voltage tester to make sure it’s off. I once forgot this step and got a tiny shock—don’t be like me!

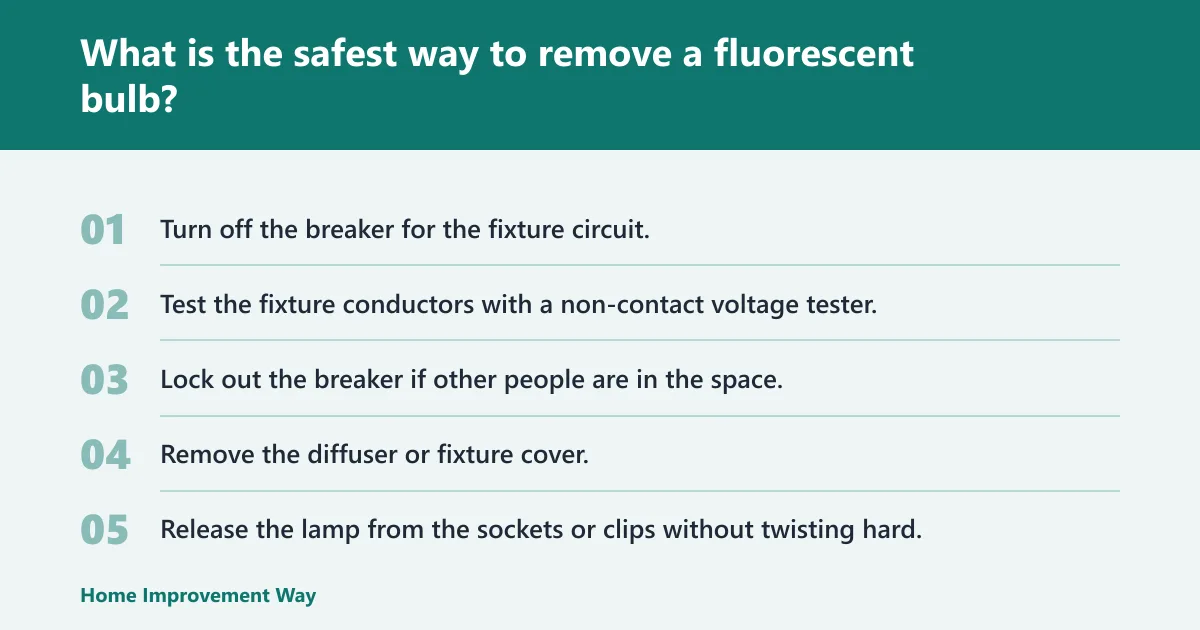

Step 2: Remove the Old Fluorescent Tube
Twist the fluorescent tube gently to release it from the sockets. Pull it out carefully. If it has a starter (a small cylinder), remove it too. Fluorescent bulbs have mercury, so don’t break them. Take them to a recycling center.
Step 3: Choose Your LED Tube Type
Decide if you’re using Type A (plug-and-play) or Type B (ballast bypass). Type A is easier for beginners. Type B needs wiring but saves more energy. I used Type A in my office for a quick swap.
Step 4: Install Type A LED Tubes
For Type A:
- Insert the LED tube into the fixture’s sockets.
- If needed, replace the old starter with a dummy starter (it comes with the tube).
- Turn the power back on. The light should shine instantly!
Step 5: Install Type B LED Tubes
For Type B:
- Open the fixture with a screwdriver.
- Cut the wires to the ballast using wire cutters.
- Replace shunted tombstones with non-shunted ones.
- Wire the fixture directly to the power (hot to one end, neutral to the other).
- Insert the LED tube and secure it.
- Turn the power on and check the light.
I suggest labeling the fixture to show it’s rewired for Type B bulbs. The Home Depot has great guides on wiring.
Step 6: Test and Enjoy
Turn the power back on. Your LED should light up right away—no flickering! If it doesn’t work, double-check the connections or bulb compatibility.
Benefits of Switching to LED
Switching to LEDs has big perks:
- Saves Money: LEDs use up to 80% less energy, cutting your electric bill.
- Longer Life: They last years, so you replace them less often.
- Better Light: LEDs are bright and clear, making rooms feel cozy.
- Eco-Friendly: No mercury means they’re safer for the environment.
In my garage, LEDs made everything brighter, and my bill dropped by $10 a month!
Drawbacks to Consider
LEDs aren’t perfect. They cost more upfront—about $7-$15 per tube compared to $3-$5 for fluorescent. Type B installation needs wiring skills, so you might hire an electrician. Also, not all LEDs work with old ballasts, so check compatibility. I learned this the hard way when I bought the wrong tube!
Comparison of Bulb Types
Here’s a table to compare fluorescent and LED bulbs:
| Feature | Fluorescent | LED |
|---|---|---|
| Energy Use | High (30-60W) | Low (10-20W) |
| Lifespan | 10,000 hours | 50,000 hours |
| Cost per Bulb | $3-$5 | $7-$15 |
| Mercury | Yes | No |
Caption: Fluorescent vs. LED comparison for a 4ft tube.
Cost Breakdown
This table shows costs for switching a 4ft fixture:
| Item | Cost | Notes |
|---|---|---|
| Type A LED Tube | $7-$10 | Plug-and-play, easy |
| Type B LED Tube | $10-$15 | Needs wiring |
| Non-shunted Tombstones | $1-$2 each | For Type B only |
| Electrician (optional) | $50-$100 per fixture | For complex setups |
Caption: Estimated costs for LED conversion.
Common Mistakes to Avoid
Here are mistakes I’ve made or seen:
- Wrong Tube Size: Measure your tube (e.g., 4ft, T8) before buying.
- Ignoring Ballast Compatibility: Check if your LED needs a ballast or not.
- Skipping Safety: Always turn off the power to avoid shocks.
My Top Tips for Success
After switching dozens of bulbs, here’s my advice:
- Start with Type A: It’s the easiest for beginners.
- Buy Quality Bulbs: Cheap LEDs burn out fast. Check Consumer Reports for reviews.
- Recycle Old Bulbs: Take fluorescent tubes to a recycling center to avoid mercury harm.
Visual Ideas for Clarity
To make this easier, imagine these visuals:
- Diagram of a Fixture: Shows ballast, tombstones, and wiring for Type B.
- Tube Size Guide: Pictures T8, T12, and T5 tubes side by side.
- Step-by-Step Photos: Shows twisting out a fluorescent tube and inserting an LED.
Frequently Asked Questions
Can I Us2e LED Tubes in Any Fluorescent Fixture?
Yes, most fixtures work with LED tubes. Check the tube size (e.g., T8, 4ft) and ballast compatibility. Type A tubes use the existing ballast, while Type B needs rewiring. Always read the LED tube’s label to match your fixture.
Do I Need an Electrician to Switch to LEDs?
For Type A tubes, no electrician is needed—just swap the tube. For Type B, you might need one if you’re not comfortable with wiring. I hired an electrician for my basement to be safe, and it cost $75.
How Much Money Will I Save with LEDs?
LEDs use 50-80% less energy, saving $5-$15 per bulb yearly, depending on usage. In my home, switching four tubes saved $40 a year. The long lifespan also cuts replacement costs.
Are LED Tubes Brighter Than Fluorescent?
LEDs can be as bright or brighter. Look for lumens (e.g., 1800-2400 for a 4ft tube). I chose 4000K LEDs for my office, and they’re clearer than my old fluorescent tubes.
What Do I Do with Old Fluorescent Bulbs?
Fluorescent bulbs have mercury, so don’t throw them in the trash. Take them to a recycling center. My local hardware store has a free drop-off bin, which I use every time.
Can I Dim LED Tubes?
Some LED tubes are dimmable, but check the label. You may need a compatible dimmer switch. I added dimmable LEDs in my living room, and they’re perfect for movie nights.
How Do I Know If My Ballast Is Compatible?
Check your ballast’s label or fixture manual. Type A tubes work with most ballasts, but old ones (over 5 years) may fail. For Type B, you bypass the ballast, so it doesn’t matter.
Conclusion
Switching fluorescent bulbs to LEDs is easy and worth it. You save money, get brighter light, and help the planet. With my guide, you can do it yourself or know what to ask an electrician. Try swapping one bulb to see the difference! Share your lighting projects in the comments—I’d love to hear how it goes. Let’s make your space shine bright!
