How to Fix Bifold Door Top Pivot: A Simple Guide
A bifold door top pivot is the small pin-and-bracket connection that lets the door swing and fold — when it wears out or the pin hole splits, the door leans, sticks, or pops off the track entirely. My own closet door did exactly that until I traced the wobble back to a stripped pivot hole, not the hinges. Left alone, a loose pivot cracks the door panel further. This guide covers diagnosing the problem, replacing the pin or bracket, and fixing a stripped hole with a dowel.
What Is a Bifold Door Top Pivot?
A bifold door top pivot is a small pin that holds your door in place. It fits into a bracket on the track at the top of your closet door.
Why It Matters
The top pivot keeps your door steady while it slides and folds. If it’s loose or broken, your door might lean, stick, or fall off the track.
Common Problems
Top pivots can wear out, loosen, or damage the door’s wood. This makes the door wobbly or hard to move. For the full parts list beyond just the pivot, see our bifold door hardware installation guide, and browse our full door hardware & locks coverage for related fixes.
Pivot Bracket vs. Guide Pivot: What’s the Difference?
A top pivot bracket is the metal plate mounted to the door jamb that holds the pivot pin and actually carries the door’s weight as it swings. A guide pivot (sometimes called a top guide) is a separate small wheel or pin on the lead door panel that rides inside the overhead track — it keeps the door aligned but does not bear weight. Mixing these up is why some replacement parts don’t fit: check which one you actually need before ordering.
📊 Standard bifold door hardware is rated for doors up to about 40 lbs per panel, with pivot pins sized for doors 3/4″ to 1-3/8″ thick — going heavier or thicker than the kit’s rating is a common reason a repair fails again quickly. Source: Johnson Hardware, 1700 Series specifications
Where Does the Top Pivot Pin Go on a Bifold Door?
The top pivot pin sits in a pre-drilled hole in the top corner of the door panel closest to the hinge side, and inserts upward into the pivot bracket mounted on the door frame’s jamb, not the track itself. On a two-panel bifold, only the outer top corner has a load-bearing pivot pin; the inner top corner rides in the track on a guide pivot instead.
Tools and Materials You’ll Need
Fixing a bifold door top pivot is no big deal with the right stuff. Most items are cheap and easy to find.
Basic Tools
- Screwdriver (Phillips or flathead)
- Drill with small bits
- Hammer
- Pliers
Materials
- Replacement top pivot pin (about $5-$10)
- Wood glue
- Wooden dowel (1/4-inch or 3/8-inch)
- Sandpaper
Where to Buy
You can grab basic tools at Home Depot or Lowe’s. For the pivot pin and bracket kit itself, see our picks below — most complete repair kits cost less than a single hardware-store trip.
Table 1: Tool and Material Costs
| Item | Estimated Cost | Where to Find |
|---|---|---|
| Screwdriver | $5-$15 | Home Depot, Lowe’s |
| Replacement Pivot | $5-$10 | Amazon, Hardware Store |
| Wood Glue | $3-$7 | Any Hardware Store |
| Wooden Dowel | $2-$5 | Lowe’s, Home Depot |
Caption: Basic tools and materials for fixing a bifold door top pivot are affordable and widely available.
Best Bifold Door Pivot Repair Kit Pick
Prime-Line N 7534 Top & Bottom Repair Kit – $8.75
Includes both top and bottom pivots, brackets, and a guide wheel in one kit — fits 1” to 1-3/8” thick doors up to 50 lbs, covering the exact pivot pin and bracket this guide walks through replacing.
- Best for: replacing worn top AND bottom pivots in one job
- Why we picked it: one kit covers every part this guide’s steps use
- Main drawback: one side of doors only — buy two for a full bifold pair
Compare more bifold door pivot repair options
 Option 1 Prime-Line Top Pivot Bracket – $4.27
|
 Option 2 4-Pack Repair Brackets, 7/16″ Pivot – $9.99
|
 Option 3 Reinforced Dual-Hole Bracket Kit – $15.99
|
As an Amazon Associate we earn from qualifying purchases.
Step-by-Step Guide to Fix a Bifold Door Top Pivot
Here’s how I fixed my bifold door top pivot. Follow these steps, and you’ll be done in no time!
Step 1: Check the Problem
Open and close the door slowly. Is it leaning? Popping off the track? Look at the top pivot pin and bracket for damage or looseness.
Step 2: Remove the Door
Lift the door up and tilt it out from the bottom. This unhooks the top pivot from the track. Set the door down gently.
Step 3: Inspect the Pivot and Bracket
Check if the pivot pin is bent or loose. If the hole in the door is too big or cracked, that’s likely the issue.
Step 4: Fix a Loose or Damaged Hole
If the hole is too big, drill it out to make it round. Glue a wooden dowel in the hole, let it dry overnight, then drill a new hole for the pivot pin.
Step 5: Replace the Pivot Pin
If the pin is broken, pop it out with pliers. Tap a new pivot pin into the hole with a hammer. Make sure it’s snug.
Step 6: Rehang the Door
Lift the door back into the track. Hook the top pivot into the bracket, then set the bottom pivot in place. Test by opening and closing.
Step 7: Adjust the Alignment

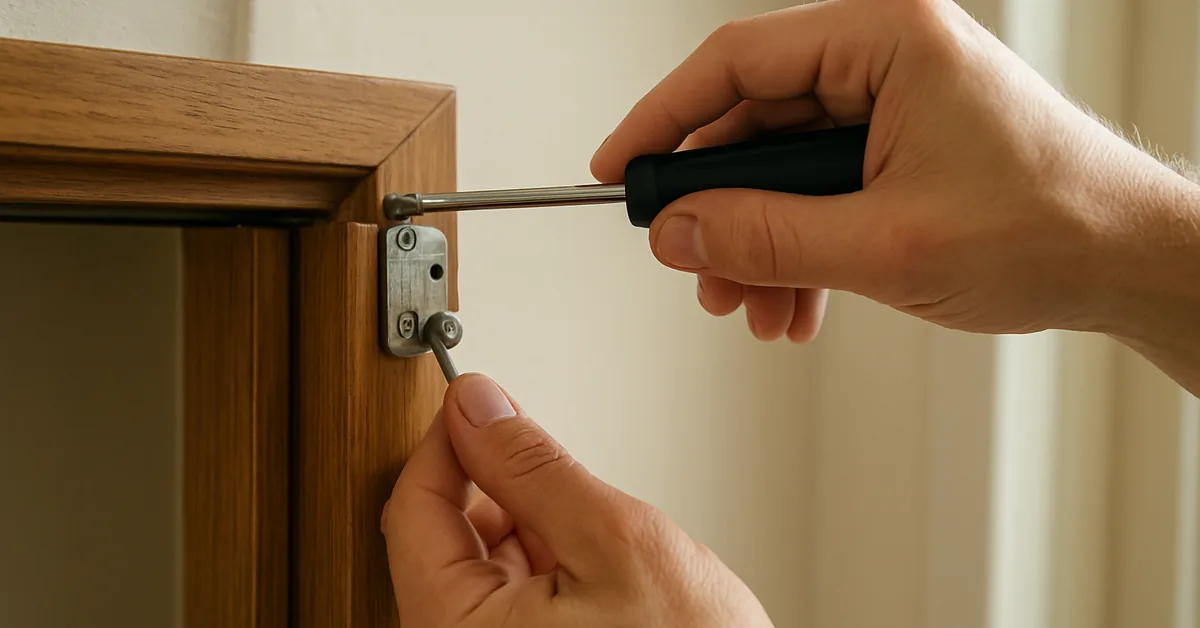

If the door’s not straight, loosen the top bracket screw. Slide the bracket until the door is plumb, then tighten it. Use a level to check.
Quick Tips for Success
- Work slowly to avoid cracking the door.
- Keep kids and pets away while drilling.
- Test the door after each adjustment.
Benefits of Fixing Your Bifold Door Top Pivot
Fixing the top pivot makes your door slide like a dream. It’s cheaper than replacing the whole door, saving you $80-$200. Plus, it’s a quick DIY win that feels awesome!
Challenges to Watch For
Sometimes, the wood is too damaged to hold a new pivot. You might need to replace the door panel. Adjusting the alignment can also take a few tries.
Alternative Solutions
If the pivot keeps failing, try a sturdier pivot bracket kit from This Old House. Or, switch to a sliding barn door for a modern look.
Table 2: DIY vs. Professional Repair
| Option | Cost | Time | Skill Level |
|---|---|---|---|
| DIY Pivot Fix | $10-$30 | 1-2 hours | Beginner |
| Professional Repair | $100-$200 | 1-2 hours | None |
| New Door | $80-$400 | 2-4 hours | Intermediate |
Caption: DIY repair is cost-effective and beginner-friendly compared to hiring a pro or replacing the door.
My Top Tips from Experience
I’ve fixed a few bifold doors, and here’s what I learned the hard way. First, don’t overtighten screws—they’ll strip the wood. Second, clean the track with a damp cloth before rehanging the door. Dirt can mess up the slide. Lastly, if the door still wobbles, check the bottom pivot too. My first try was a flop because I ignored it!
Common Mistakes to Avoid
- Skipping the level—your door will lean.
- Using the wrong size dowel for repairs.
- Forgetting to lubricate the track with silicone spray.
Why Bifold Doors Are Worth Fixing
Bifold doors save space and look great in closets. A quick pivot fix keeps them working for years. It’s like giving your door a new life without spending much!
When to Call a Pro
If the door frame is warped or the track is damaged, a pro might be your best bet. They’ll cost more, but they handle tricky fixes fast.
Frequently Asked Questions
Why does my bifold door keep falling off the track?
The top pivot might be loose or the hole is too big. Tighten the bracket or fill the hole with a dowel and glue.
How do I know if the top pivot is broken?
If the door leans or wobbles, check the pivot pin. A bent or loose pin needs replacing.
Can I fix a bifold door top pivot without tools?
You’ll need a screwdriver and maybe a drill. Basic tools make the job much easier and safer.
How much does a replacement pivot pin cost?
A new pivot pin costs $5-$10 at hardware stores like Home Depot or Lowe’s.
What if the wood around the pivot is cracked?
Glue the crack with wood glue, clamp it, and let it dry. Then, drill a new hole for the pivot.
How long does it take to fix a bifold door top pivot?
It usually takes 1-2 hours, depending on the damage and your DIY skills.
Can I prevent top pivot problems in the future?
Clean the track yearly and check screws for looseness. A little maintenance goes a long way!
Conclusion
Fixing a bifold door top pivot is easier than it looks. With a few tools, some patience, and my step-by-step guide, you can make your door slide smoothly again. It’s a cheap, satisfying DIY project that saves money and boosts your skills. Try it out, and share your success story with friends! Got a tip of your own? Drop it in the comments below!
