Heat Pump Size Calculator: Sanity-Check the Result
A heat pump size calculator is only a first check: if its output does not line up with a room-by-room look at heat loss and supply capacity, the size is probably wrong. Get it wrong and rooms can stay cold, bills climb, and the equipment wears out sooner. This guide shows a quick room-by-room check you can do before you buy.
How is this calculated?
Press Calculate to see the math with your numbers.

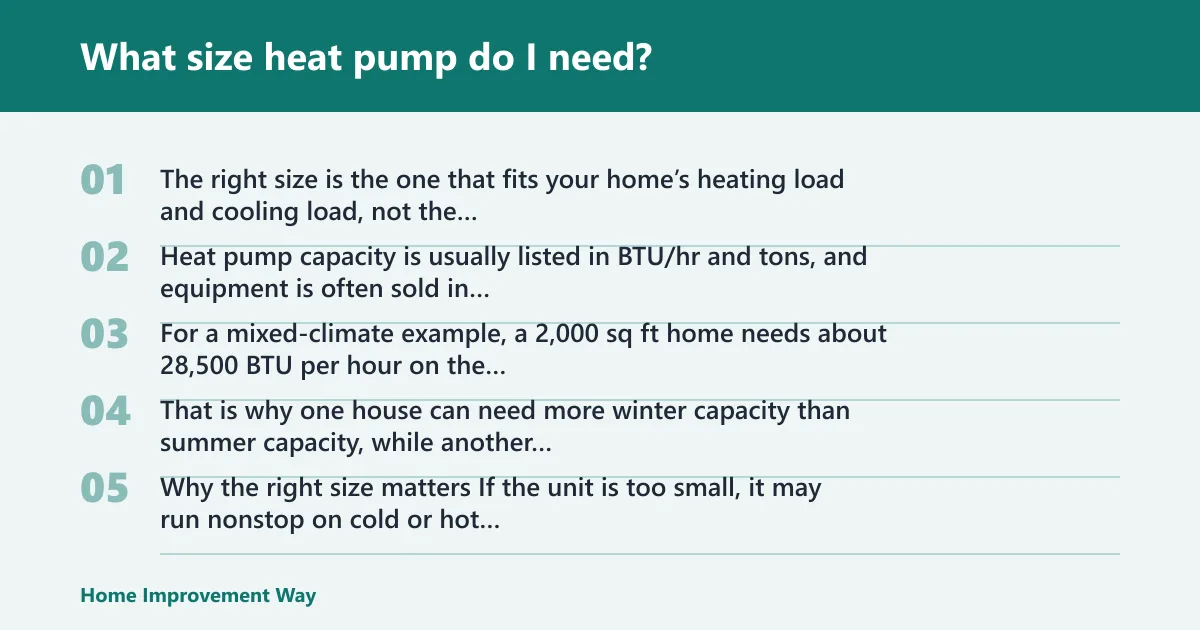

What size heat pump do I need?
The right size is the one that fits your home’s heating load and cooling load, not the floor area alone. Heat pump capacity is usually listed in BTU/hr and tons, and equipment is often sold in 1-ton steps, so the target is a close match rather than an exact decimal.
For a mixed-climate example, a 2,000 sq ft home needs about 28,500 BTU per hour on the coldest night and about 3.5 tons of cooling. That is why one house can need more winter capacity than summer capacity, while another home with big west-facing windows can need the reverse.
Why the right size matters
If the unit is too small, it may run nonstop on cold or hot days and still miss the setpoint. If it is too large, it can short-cycle, control humidity poorly, and feel uneven from room to room. I check size against the house, not the number on the cabinet.
According to What Size Heat Pump Do I Need (Heat Pump Size Calculator) — PickHVAC advises skipping a heat pump in Zone 6 or Zone 7.
How do I calculate what size heat pump I need?
Use a heat pump size calculator as a screening tool, then compare its result with your own house conditions. The calculator uses square footage, climate zone, insulation condition, and sun exposure to estimate capacity in BTU/hr and tons. That output should look believable before you ask for bids.
How the calculator works
The calculator is built around both heating and cooling needs. Standard, ENERGY STAR, or premium heat pumps are sized to the cooling load. A cold-climate heat pump is sized to the heating load, but capped at 1.25 times cooling load.
That difference matters. In a mild climate, the cooling number may drive the answer. In a colder zone, the heating number usually decides the size, especially when outdoor temperature drops far below design conditions.
What the output means
BTU/hr tells you how much heat the system can move per hour. Tons are just a shorthand for capacity. One ton is often treated as roughly 12,000 BTU/hr, so a 3.5-ton unit is different from a 2-ton unit, and the gap between them can matter in equipment choices.
| Common capacity | BTU/hr | Typical use |
|---|---|---|
| 2 ton | 24,000 | Smaller homes, tighter envelopes, lighter loads |
| 3 ton | 36,000 | Many mid-sized homes in moderate climates |
| 3.5 ton | 42,000 | Common answer for a larger mixed-climate home |
| 4 ton | 48,000 | Homes with higher cooling or heating loads |
How to sanity-check the calculator with your own home
The fastest check is to total the conditioned space room by room, then flag anything that is not fully heated and cooled. A calculator only works if the area, envelope quality, and climate assumptions are right. Bad inputs give you neat-looking nonsense.
Measure conditioned square footage room by room
Include all heated and cooled areas. Do not count garages, vented porches, or storage rooms that are not part of the conditioned envelope. For a simple rectangle, PickHVAC notes that a 50 x 30 foot footprint equals 1,500 square feet, which is a useful mental check when the plan is missing.
Flag problem rooms and odd spaces
Additions, basements, split-level sections, and partially conditioned rooms often distort the answer. A finished basement with weak insulation may behave like a much larger load than its square footage suggests. A sunroom or bonus room over a garage can need its own check because it leaks heat in its own way.
Note insulation condition and sun exposure
Classify the home as new, good, average, or poor. Older homes usually need larger capacity because heat loss rises through walls, ceilings, windows, and air leaks. Sun exposure changes the load too. South-facing glass can cut winter heating demand and raise summer cooling demand, especially with little shade.
Record climate zone and design low temperature
Climate zone changes the answer in a big way. Hot-humid and hot-dry regions use a 30°F design low in the calculator. Very cold regions use a -10°F design low. PickHVAC recommends using Zone 3 near the Dallas/Ft. Worth boundary, and advises skipping a heat pump in Zone 6 or Zone 7.
- Measure the conditioned square footage room by room.
- Mark rooms that are additions, basements, split-level spaces, or partly conditioned.
- Rate insulation as new, good, average, or poor.
- Note major window area and strong sun exposure.
- Write down your climate zone or design low temperature.
- Compare the calculator result with a Manual J request checklist.
Should you size for heating or cooling?
In many mixed and warm climates, cooling load often drives the final size because summer peaks are stronger than winter demand. In colder climates, heating load usually takes over, especially when the design low is far below freezing. The right answer depends on where you live and how the house is built.
When cooling load should drive the answer
If you live in a hot-humid or hot-dry region, the summer load may be the larger problem. The calculator is built around both heating and cooling needs, but the cooling side often sets the size for standard equipment. That matters most in homes with big west-facing windows and strong afternoon sun.
When heating load should drive the answer
In colder areas, the heating load can be the deciding number because capacity drops as outdoor temperature falls. Standard heat pumps are modeled at about 60% of rated capacity at 17°F. Cold-climate heat pumps are modeled at about 70% of rated capacity at 5°F. That drop is why backup heat matters.
What changes in Zone 6 and Zone 7
Zone 6 and Zone 7 can push a heat pump beyond what is comfortable without auxiliary heat. Backup heat may be electric resistance or a gas furnace. If the heat pump output no longer covers the load, the backup heat carries the coldest hours. That is part of the design, not a flaw.
How climate, insulation, and sun exposure affect heat pump size
Climate, insulation, and sun exposure change the load in different directions. Colder climates raise heating capacity needs. Poor insulation pushes the size up in both seasons. Sun exposure can lower heating demand in winter while increasing cooling demand in summer, so the same window that helps in January can hurt in July.
Climate zone
Climate zone is the first reality check. A home in Virginia or North Carolina is not treated like a home in a very cold northern zone. A 2,000 sq ft mixed-climate example needs about 28,500 BTU per hour on the coldest night, which is why local design conditions matter more than national averages.
Insulation condition
Older homes generally need larger capacity because heat escapes faster through the shell. A calculator that ignores insulation quality can miss the mark by a wide margin. If the attic is weak, the windows are leaky, or the walls have little insulation, the house will act bigger than the tape measure says.
Sun exposure
South-facing glass can lower heating demand on sunny winter days, but it can also load the rooms hard in summer. Shade trees, overhangs, and low-e glass all change the result. That is one reason a room-by-room check beats a single square-foot rule.
Is my home too big for a single heat pump?
Some homes are fine with one ducted system. Others are not. The question is not only square footage, but layout, duct paths, zone balance, and how much of the home is truly conditioned. Large or broken-up homes often need multiple zones or separate equipment.
When ducted systems make sense
A central ducted system works best when the house is compact, the ducts are short and well sealed, and the rooms share similar loads. If the building shape is simple and the conditioned area is continuous, one correctly sized system can work well without complicated zoning.
When ductless or multiple zones fit better
Ductless heads or multiple indoor units can help when additions, finished basements, or split-level areas do not connect cleanly to the main duct network. They are also useful when one area runs hot and another runs cold. The goal is to match capacity to the rooms that actually need it.
Why partially conditioned spaces can distort the answer
A partially heated basement or an enclosed porch can trick the calculator. If you count the square footage but do not condition the room the same way as the rest of the house, the result can be too large. If the room is truly part of daily living space, it should be counted honestly and treated as a load driver.
Use this printable heat pump sizing sanity-check worksheet
This worksheet helps a homeowner compare the calculator result with a Manual J quote request before accepting any proposal. Fill it out before calling for bids. If the calculator result and the room-by-room check disagree, ask for a Manual J load calculation instead of guessing.
| Item | Your notes | Why it matters |
|---|---|---|
| Conditioned square footage | ____ sq ft | Sets the base load estimate |
| Problem rooms | Addition, basement, split-level, sunroom, bonus room | These spaces often need separate attention |
| Insulation condition | New / good / average / poor | Older homes usually need more capacity |
| Climate zone or design low | Zone ____ or ____°F | Colder zones need more heating capacity |
| Sun exposure | Low / medium / high | Changes both heating and cooling load |
| Calculator result | ____ BTU/hr or ____ tons | Compare against the room-by-room check |
| Manual J request checklist | Ask for room loads, design temp, duct losses, backup heat | Shows whether the quote is based on real data |
What to ask for with a Manual J request
Ask for room-by-room loads, design temperature, duct losses, and the backup heat plan. Also ask how the contractor handled additions, basement areas, and any partially conditioned space. If those details are missing, the quote is not ready for a final size decision.
What happens if the size is wrong?
Wrong size creates predictable failure modes. Undersized systems struggle to meet load and lean on backup heat. Oversized systems short-cycle and waste comfort. Right-sized systems run long enough to manage temperature and humidity without constant starts and stops.
Undersized heat pumps
An undersized unit may never catch up on the coldest or hottest days. In colder zones, the backup heat may run too often and energy bills can climb. Rooms far from the air handler can feel weak or drafty because the system is always behind the load.
Oversized heat pumps
An oversized system can mask room-by-room problems for a while, then create new ones. It may satisfy the thermostat quickly, then shut off before the house gets even. That often leaves humidity control weak in summer and comfort uneven across the house.
Right-sized systems
The right size is usually the one that matches the load closely and fits the climate, shell, and layout. In a 2,000 sq ft mixed-climate example, the numbers point to about 28,500 BTU per hour of heating and about 3.5 tons of cooling, with 1.5 kW of backup heat in the example. That is the kind of check worth doing before a bid is accepted.
Frequently asked questions
How do I calculate what size heat pump I need?
Start with conditioned square footage, then adjust for climate zone, insulation condition, and sun exposure. Use a heat pump size calculator for a first pass, then check each room against the result. If additions, basements, or weak insulation are in play, ask for a Manual J load calculation before buying.
What size heat pump do I need?
There is no single answer by square footage alone. Two houses with the same floor area can need very different capacity if one is tight and shaded while the other is leaky and sun-baked. The right answer comes from matching capacity to heating and cooling loads, not a shortcut number.
How many BTU do I need for a 1500 square foot house?
The square footage is only a starting point. A 1,500 square foot home in a mild, well-insulated setting may need far less capacity than a drafty older home of the same size. Check climate, insulation, and window exposure before turning that area into a BTU number.
What size heat pump do I need for a 2000 sq ft home?
A 2,000 sq ft mixed-climate example needs about 28,500 BTU per hour on the coldest night and about 3.5 tons of cooling. That is a useful reality check, not a universal rule. Homes with poor insulation, strong sun exposure, or odd layouts may land higher or lower.
Is my home too big for a single heat pump?
It may be if the house has additions, a split-level layout, or partially conditioned rooms that do not share loads evenly. A single ducted system can work in a simple, compact home. Once the building gets broken into zones, multiple systems or ductless units may fit better.
Should I use a heat pump for heating in Zone 6 or Zone 7?
Those colder zones deserve extra caution because capacity falls as outdoor temperature drops. PickHVAC advises skipping a heat pump in Zone 6 or Zone 7. If a heat pump is still considered, the design should include backup heat and a careful load check, not a guess based on square footage.
How do climate, insulation, and sun exposure affect heat pump size?
Colder climate zones increase heating capacity needs, poor insulation pushes the size up in both seasons, and sun exposure can swing the answer either way. South-facing glass may help in winter and hurt in summer. Those are the inputs that make a calculator useful instead of misleading.
