What Size Drill Bit For A 1/8 Pipe Thread Tap? Answered

It’s a common DIYer puzzle. You’ve got a plumbing job, a small piece that needs a new thread, and you’re reaching for your tap and die set. Then you hit a wall.

What size drill bit do you need for that 1/8 pipe thread tap? It feels like a tiny detail, but it’s one that can make or break your project. Getting it wrong means a thread that’s too loose or too tight.

Frustrating, right? Let’s break this down simply so you can get back to fixing things with confidence.

The standard drill bit size for a 1/8 pipe thread tap is typically a #29 drill bit (0.136 inches or 3.45 mm). This size creates the correct pilot hole for cutting a 1/8-27 NPT (National Pipe Taper) thread, allowing the tap to form a strong, tight seal. Always confirm with tap manufacturer specifications for precise guidance.

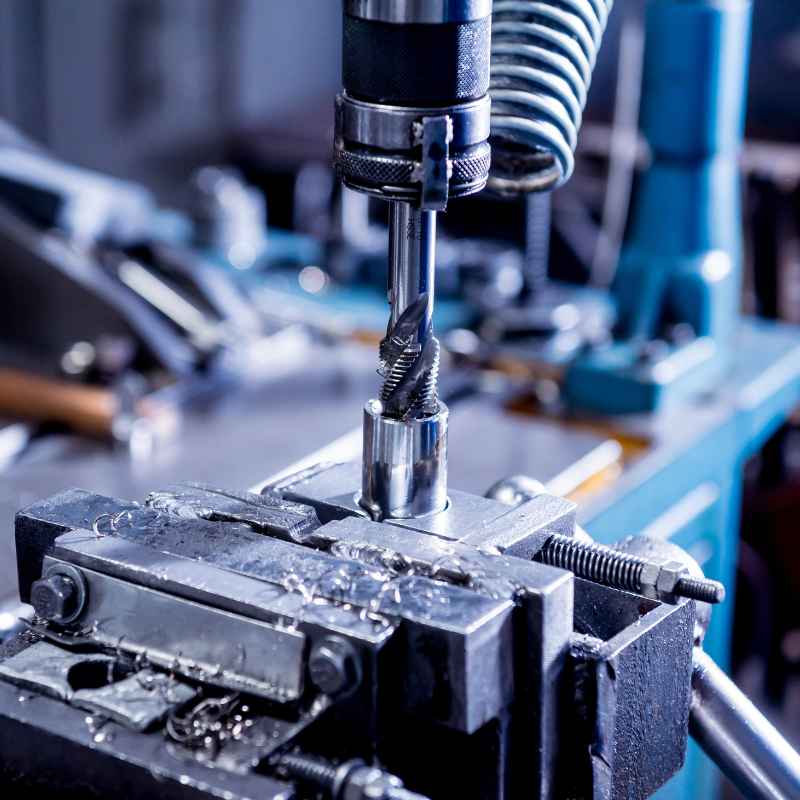

Understanding Pipe Thread Taps and Drill Sizes

Pipe threads are special. They aren’t like the straight threads you see on a bolt. Pipe threads are tapered.

This means they get smaller as they go deeper. This taper helps create a seal. When you screw two pieces together, they wedge tightly.

This is super important for stopping leaks.

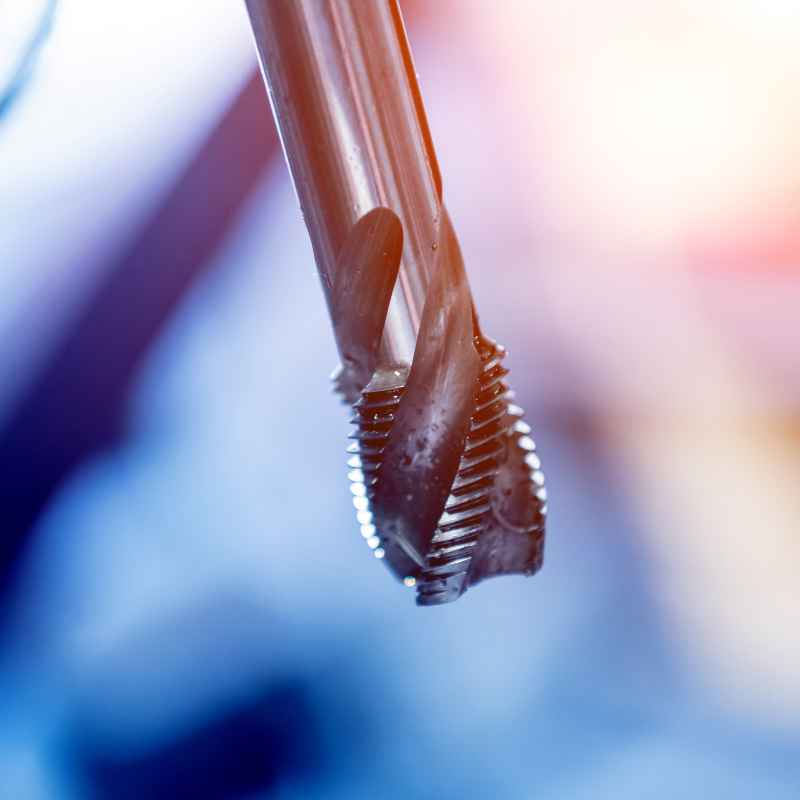

A tap is a tool that cuts threads. You use it to make a new threaded hole. For pipe threads, you use a pipe thread tap.

This tap has a taper built into it. As you turn the tap, it cuts threads deeper into the material. This creates the special tapered thread needed for pipes.

Now, why does the drill bit size matter so much? The drill bit creates the starting hole. This hole is called the pilot hole.

The tap then cuts the actual thread inside this pilot hole. If the pilot hole is too big, the tap won’t have enough material to cut a proper thread. The thread will be shallow or weak.

If the pilot hole is too small, the tap might break. Or, it will be very hard to turn. It can also damage the tap.

Getting the right drill bit size is key. It gives the tap the perfect amount of material to work with. This ensures a strong, leak-proof thread.

Explore more about Drilling with this related post. How To Sharpen Drill Bits With An Angle Grinder Safely

The Standard Size for 1/8 Pipe Thread Taps

For a standard 1/8 pipe thread, which is usually a 1/8-27 NPT thread, the most common and widely accepted drill bit size is a #29 drill bit. This size is specific and comes up again and again in metalworking and plumbing guides. It’s the go-to for most situations.

Let’s look at the numbers. A #29 drill bit has a diameter of 0.136 inches. In metric, that’s about 3.45 millimeters.

This measurement is crucial. It’s the perfect starting point for cutting those 1/8-27 NPT threads. It leaves just the right amount of metal for the tap to form the threads.

Why this specific size? It’s all about the thread’s dimensions. A 1/8-27 NPT thread has a specific pitch and taper.

The #29 drill bit creates a hole that is just shy of the final thread’s minor diameter. The tap then cuts the outer threads into the walls of this hole. This process forms the complete tapered thread.

It’s important to remember that this is a standard. Sometimes, materials can vary. Or the tap itself might have slight differences.

Always, always check the packaging that came with your tap. Most tap manufacturers will specify the recommended drill bit size. This is your most reliable guide.

My Own Drill Bit Blunder

I remember one time, early in my DIY journey, I was trying to add a small drain port to a metal bracket. It was for a custom setup in my garage workshop. I needed to tap a 1/8 pipe thread.

I grabbed what I thought was the right tap. Then, I looked at my drill bits. I saw a few that looked pretty close.

I picked one that seemed about right, maybe a bit bigger than the tap’s tip.

I drilled the hole. It felt… too easy. The drill bit spun through the metal like butter.

I started tapping. It went in super smooth, almost too smooth. When I finished, I tried screwing in a fitting.

It went in most of the way by hand. Then it just stopped. It wasn’t tight.

It felt loose. The threads weren’t biting properly. I had used a drill bit that was too large.

The hole was too wide. The tap couldn’t create enough thread depth. I ended up having to drill it out larger and tap it for a bigger pipe size.

A simple #29 drill bit would have saved me hours and a lot of frustration.

Looking for more insights on Drilling? You may find this post valuable. How To Use A Screw Extractor Without A Drill (Step-By-Step)

Understanding NPT Threads: A Little Deeper Dive

NPT stands for National Pipe Taper. It’s the standard in the United States for tapered pipe threads. You see it everywhere.

Water pipes, air lines, hydraulic systems – they all often use NPT threads. The “T” stands for taper. This taper is usually 1/16 inch per foot.

That’s about 1 degree. So, for every foot of length, the diameter changes by 1/16 of an inch.

A 1/8 NPT thread means the nominal pipe size is 1/8 inch. The “27” means there are 27 threads per inch. This is important because not all pipe threads have the same number of threads per inch.

For example, 1/4 NPT has 18 threads per inch. The number of threads per inch affects the drill bit size. It also affects the depth of the thread cut by the tap.

When you drill the pilot hole, you’re not drilling to the full minor diameter of the finished thread. The tap does that. The drill bit size is chosen so that after the tap cuts the thread, the crests of the internal thread are supported by the roots of the external thread.

This creates a metal-to-metal seal. It’s a clever design that works very well for preventing leaks, especially under pressure.

So, the #29 drill bit is specifically calculated for the 1/8-27 NPT standard. It gives the tap enough material to cut into. This material forms the walls of the thread.

It’s a precise relationship. Not just any drill bit that looks about right will do the job.

What Happens If You Use the Wrong Drill Bit Size?

Using the wrong drill bit can lead to several problems. None of them are good news when you’re trying to get a job done.

1. Hole Too Large: As I experienced, if the drill bit is too big, the pilot hole is too wide. The tap won’t have enough metal to cut a full thread.

The resulting thread will be shallow and weak. Fittings might screw in easily but won’t seal properly. They might even cross-thread or strip easily.

2. Hole Too Small: If the drill bit is too small, the tap has to remove too much material. This puts a lot of stress on the tap.

Taps are brittle. They can snap off inside the hole. This is a nightmare to remove.

It can also make the tap very hard to turn. You might get a stuck tap. This can damage your workpiece and the tap itself.

3. Poor Seal: Even if the thread isn’t completely ruined, the seal might be compromised. If the thread depth isn’t correct, it won’t create that metal-to-metal seal that NPT threads rely on.

This means leaks. Leaks are the enemy in any plumbing or pneumatic system.

4. Damaged Threads: You might end up with threads that are rough or deformed. This makes it hard to screw fittings in.

It can also lead to leaks. Re-tapping a damaged thread is sometimes possible, but it’s extra work. Often, it means starting over.

So, you can see why getting this one small detail right is so important. It affects the entire integrity of the threaded connection.

Looking for more insights on Drilling? You may find this post valuable. How To Drill An Acrylic Sheet Without Cracking It

Comparing Drill Bit Sizes: #29 vs. Others

Let’s look at a few common drill bit sizes and why they are not the right choice for a 1/8 pipe thread tap.

#29 Drill Bit: 0.136 inches (3.45 mm). This is the standard. It’s the goldilocks size – just right.

#28 Drill Bit: 0.1405 inches (3.57 mm). This is slightly larger than the #29. Using this might result in shallower threads.

It’s often considered too large by many machinists for a clean 1/8 NPT thread.

#30 Drill Bit: 0.1285 inches (3.26 mm). This is smaller than the #29. Using this would require the tap to remove more material.

This increases the risk of tap breakage and makes it harder to tap.

1/8 Inch Drill Bit: 0.125 inches (3.175 mm). This is even smaller. It’s definitely too small for a standard 1/8 NPT tap.

The tap would struggle immensely and likely break.

5/16 Inch Drill Bit: 0.3125 inches (7.94 mm). This is huge compared to what’s needed. This is for a much larger tap, likely a 1/4 inch or larger pipe thread.

The #29 drill bit is a very specific size. It’s not a common fraction or a simple millimeter measurement. This is why people often get confused.

It’s not as intuitive as “drill a 1/4 inch hole.” You might need to buy a set of numbered drill bits or a specific fractional inch set to find it.

Finding the Right Drill Bit in Your Workshop

So, how do you make sure you have the right drill bit on hand? Here are a few ways:

1. Numbered Drill Bit Set: This is the most common way to find a #29 drill bit. Numbered sets go from #1 (0.228 inches) up to #80 (0.0135 inches).

You’ll need to check your set to see if it includes #29. They are usually fairly inexpensive.

2. Fractional Inch Drill Bit Set: Sometimes, fractional sets will include smaller fractions that are close to numbered sizes. However, the #29 bit is not a simple fraction like 1/8 or 3/16.

You might not find it in a basic fractional set.

3. Metric Drill Bit Set: If you’re using metric drill bits, you’ll be looking for 3.45 mm. You might need a very precise metric set that includes half-millimeter increments or even finer.

A 3.5 mm bit is very close but might be slightly too large. A 3.0 mm bit is too small.

4. Buying Individually: If you can’t find a #29 bit in your existing sets, you can often buy individual drill bits. Hardware stores, tool supply shops, and online retailers will sell them.

This is the most direct way to get the exact size you need.

5. Checking Tap Packaging: I can’t stress this enough. Your tap should come with instructions or markings.

These will tell you the recommended drill size. If you bought a tap as part of a kit, the kit might have a chart. Always defer to the manufacturer’s recommendation.

Don’t guess. A few extra dollars for the correct drill bit is far cheaper than a broken tap or a failed fitting. It’s about setting yourself up for success from the very first step.

Want to learn more about Drilling? This post could provide more insights. Difference Between A Drill And Hammer Drill Explained

When to Consider Other Drill Bit Sizes

While the #29 drill bit is the standard for 1/8-27 NPT, there are times when you might consider a slightly different approach. These are exceptions, though, and should be approached with caution.

1. Different Pipe Thread Standards: If you are not using NPT threads, the drill bit size will change. For example, BSP (British Standard Pipe) threads have different dimensions and taper rates.

Always identify your thread standard first.

2. Non-Standard Materials: Very soft materials like some plastics might require a slightly different hole size. Or extremely hard metals might behave differently.

However, for most common metals like brass, aluminum, steel, and iron, the #29 is appropriate.

3. Tap Manufacturer’s Specifics: As mentioned multiple times, always check your tap. Some taps are designed with slightly different tolerances.

The manufacturer’s recommendation is king.

4. Re-tapping Existing Threads: If you are cleaning up damaged threads, you might not need to drill a new hole. You would likely use a thread chaser or a slightly larger tap if the damage is severe.

This is a different process than cutting new threads.

5. Specific Engineering Requirements: In highly specialized applications, engineers might specify a slightly different drill size for optimal performance or thread strength. This is rare for general DIY or even most professional trades.

For almost all general plumbing, automotive, or workshop use involving a 1/8 pipe thread tap, stick with the #29 drill bit. Deviating from this should only be done with a clear understanding of why.

Looking for more insights on Drilling? You may find this post valuable. Do Male Or Female Carpenter Bees Drill Holes? Here’S The Truth

The Tapping Process: Beyond Just the Drill Bit

Getting the drill bit right is the first step, but it’s not the only part of successful tapping. Here’s a quick rundown of what else matters:

1. Lubrication: Always use cutting fluid or oil when tapping. This helps the tap cut smoothly.

It also cools the tap and the workpiece. This prevents galling and extends the life of your tap.

2. Straightness: The drill bit must go in straight. The tap must also be started straight.

If the hole is angled, the threads will be cut at an angle. This can cause leaks and make fittings difficult to start.

3. Peppering or Backing Out: When tapping, don’t try to cut the full depth in one go. Turn the tap about one full turn, then back it off a half turn.

This breaks the chip. It clears the flutes. This prevents the tap from binding and breaking.

4. Cleaning the Flutes: Periodically remove the tap. Clean out the chips and swarf from the tap’s flutes.

This prevents clogging and allows the tap to cut cleanly.

5. Feel: Develop a feel for the tapping process. You should feel resistance, but it shouldn’t feel like you’re forcing it.

If it feels too hard, stop. Check for binding or chips.

These steps, combined with the correct drill bit size, will lead to much better results. It’s a system, and each part is important.

Real-World Scenarios Where This Matters

You’ll encounter the need for a 1/8 pipe thread tap in many common situations:

• Adding a Nipple to a Fitting: If you have a bulkhead fitting with a plain hole and need to connect a pipe or hose, you might tap the fitting.
• Repairing a Stripped Thread: Sometimes, a small threaded port on a machine or fixture gets stripped. You can drill it out slightly and re-tap it.
• Custom Plumbing or Air Lines: When building custom setups, you often need to create threaded ports in metal components.
• Small Gauge Ports: Pressure gauges or sensors often use 1/8 NPT threads.
• Drain Plugs: In some smaller reservoirs or components, 1/8 NPT is used for drain plugs.

In my own experience, I’ve used them to add ports for oil pressure gauges on custom engine setups, to create connections for compressed air tools on a homemade manifold, and even to add small vents to various mechanical assemblies.

When is a 1/8 Pipe Thread Normal, and When Should You Worry?

A 1/8 pipe thread is incredibly common and generally not something to worry about. It’s a standard size used in countless applications. The worry comes when the process goes wrong, or when the result isn’t what you expect.

Normal Scenarios:

• You’re connecting standard pipe fittings.
• You’re installing a common pressure gauge.
• You’re adding a small drain port to a part.
• The fitting screws in smoothly and tightens up securely.
• There are no leaks after assembly.

When to Worry:

• The tap won’t start threading: The pilot hole is likely too small or not straight.
• The tap is extremely hard to turn: The pilot hole is too small, or you’re not using enough lubrication.
• The tap breaks: This usually means the pilot hole was too small or you forced it.
• The fitting screws in too easily by hand: The pilot hole was too large, and the threads are shallow.
• The fitting doesn’t seal: This can be due to shallow threads, damaged threads, or improper assembly.
• The tapped hole looks rough or deformed: The tap might be dull, or you didn’t use enough lubrication.

If you encounter any of the “worry” signs, stop immediately. Assess the situation. It’s often better to drill out and re-tap to a larger size than to try and salvage a poorly cut thread.

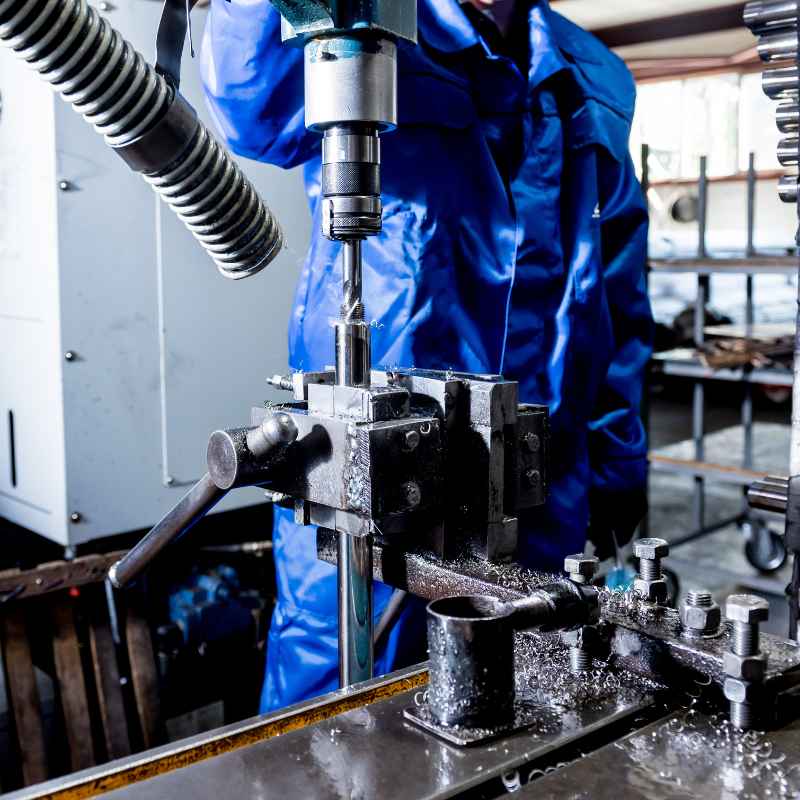

Quick Tips for Tapping Success

Here are some final quick tips to ensure your tapping goes smoothly:

• Use a Tap Wrench: A proper tap wrench gives you good control and leverage.
• Start Square: Make sure your drill bit is perfectly perpendicular to the surface. Use a drill press if possible for critical holes.
• Chamfer the Hole: After drilling, lightly chamfer the edge of the hole with a larger drill bit or a countersink tool. This helps the tap start more easily and prevents damage to the tap’s lead threads.
• Patience is Key: Don’t rush the process. Take your time and work methodically.
• Quality Tools: Invest in good quality taps and drill bits. They make a huge difference.

Frequently Asked Questions About 1/8 Pipe Thread Taps

What is the standard drill bit size for a 1/8 pipe thread tap?

The standard and most recommended drill bit size for a 1/8 pipe thread tap (specifically 1/8-27 NPT) is a #29 drill bit. This corresponds to a diameter of 0.136 inches or about 3.45 millimeters.

Can I use a 1/8 inch drill bit for a 1/8 pipe thread tap?

No, you should not use a 1/8 inch drill bit (which is 0.125 inches or 3.175 mm) for a 1/8 pipe thread tap. This size is too small. It requires the tap to remove too much material, which can lead to tap breakage and difficulty in tapping.

What happens if I use a drill bit that’s too large for a 1/8 pipe thread tap?

If you use a drill bit that is too large, the pilot hole will be too wide. This means the tap will not have enough material to cut a full and strong thread. The resulting threads will be shallow and weak, and fittings may not seal properly or may strip easily.

How do I find a #29 drill bit?

A #29 drill bit is typically found in numbered drill bit sets. You can also purchase individual drill bits from hardware stores, tool supply shops, or online retailers. If using metric tools, you’ll be looking for a bit close to 3.45 mm.

Do I need to use cutting fluid when tapping a 1/8 pipe thread?

Yes, it is highly recommended to use cutting fluid or oil when tapping any metal. This lubricates the tap, cools the cutting action, and helps to clear chips. It makes tapping much easier, produces a cleaner thread, and extends the life of your tap.

Is it okay to back the tap out while cutting threads?

Yes, it is not only okay but recommended. After turning the tap about one full turn, back it off a half turn. This action breaks the chip that is being formed. It helps to prevent the tap from binding or breaking, and it clears the flutes of debris, allowing for a cleaner cut.

Conclusion: Small Bit, Big Impact

So there you have it. That tiny detail – the size of the drill bit for your 1/8 pipe thread tap – is incredibly important. Using the right drill bit, usually a #29, sets you up for success.

It ensures the tap can do its job perfectly. This leads to strong, leak-proof threads every time. Don’t let this small step trip you up.

Measure twice, drill once, and tap with confidence!
