Garage Door Section Replacement vs. Full Door Replacement

Replace one garage door section only if the model is still available, the damage is limited to one section, and the remaining panels, tracks, and hardware are in good condition; otherwise, full replacement is usually the safer choice. Hidden wear can leave you with a door that binds, leaks, or fails sooner than expected. This guide shows how to judge section damage, age, parts availability, and total repair cost so you can choose the right fix.

Decision factor	door section replacement	full door replacement	Winner
Upfront cost	Usually lower. A standard single steel panel replacement is often described in the low-to-mid hundreds, but labor, matching, and any paint or finish blending add to the bill.	Usually higher. A full new garage door is often described from the mid hundreds for a basic single door, with more cost if you also refresh hardware or upgrade insulation.	door section replacement
Matching risk	Higher. Color fade, embossment, and discontinued styles can make the new section stand out even when the profile fits.	Lower. All panels, finishes, and hardware are new and consistent.	full door replacement
Hardware condition	Only sensible when springs, rollers, tracks, and opener are still in good shape.	Better when the door system needs a broader refresh, because worn hardware can be replaced at the same time.	full door replacement
Insulation and safety features	Usually unchanged unless the matching section is available in the same construction.	Better for upgrading insulation, safety features, and noise control.	full door replacement
Best fit	One or two damaged sections on a newer, still-supported door.	Older doors, multiple damaged sections, or doors with warping, rust, or structural bend.	tie

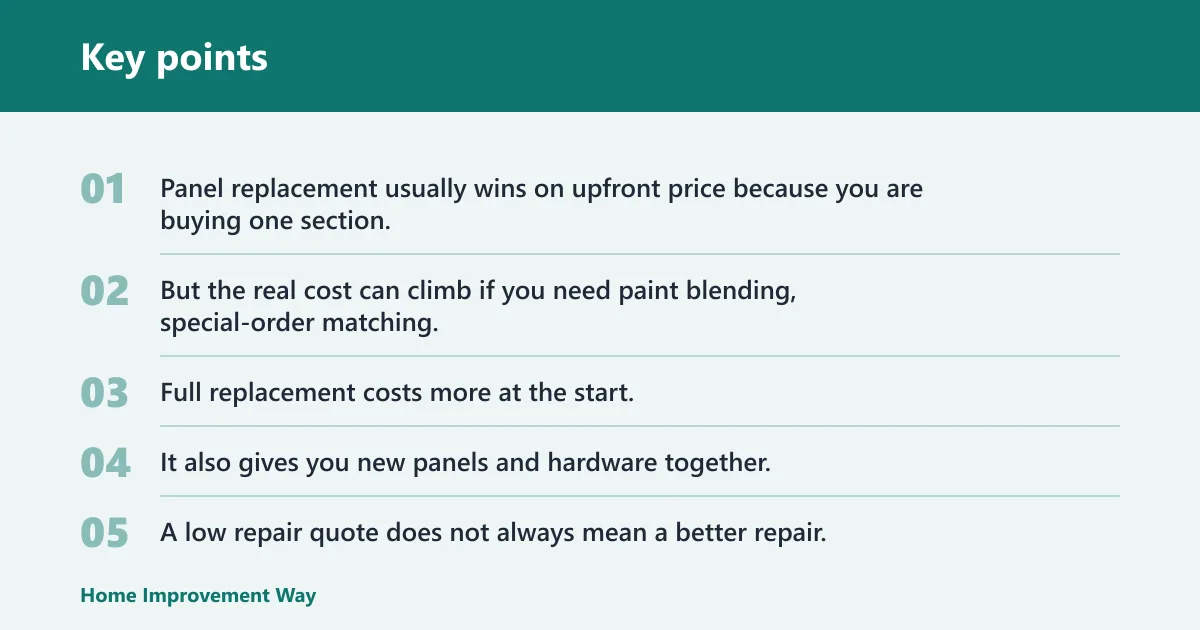

Which option fits the damage?

The right choice starts with system condition, not appearance. A sectional garage door uses horizontal panels, and one damaged section can sometimes be replaced without changing the entire door. That works best when the door is still current, the part can be matched, and the rest of the door hardware is healthy.

Cost is only part of the decision

Panel replacement usually wins on upfront price because you are buying one section, not a full door system. But the real cost can climb if you need paint blending, special-order matching, or new rollers, hinges, or springs to make the partial repair work properly.

Full replacement costs more at the start, but it can avoid the extra steps needed to force an old door back into service. It also gives you new panels and hardware together, which matters if the door already has age-related wear.

What the table does not show

A low repair quote does not always mean a better repair. If the model is discontinued, the replacement panel may be close in profile but still obvious in color or embossment. If the existing door is near end of life, the partial fix can become the most expensive way to postpone a full replacement.

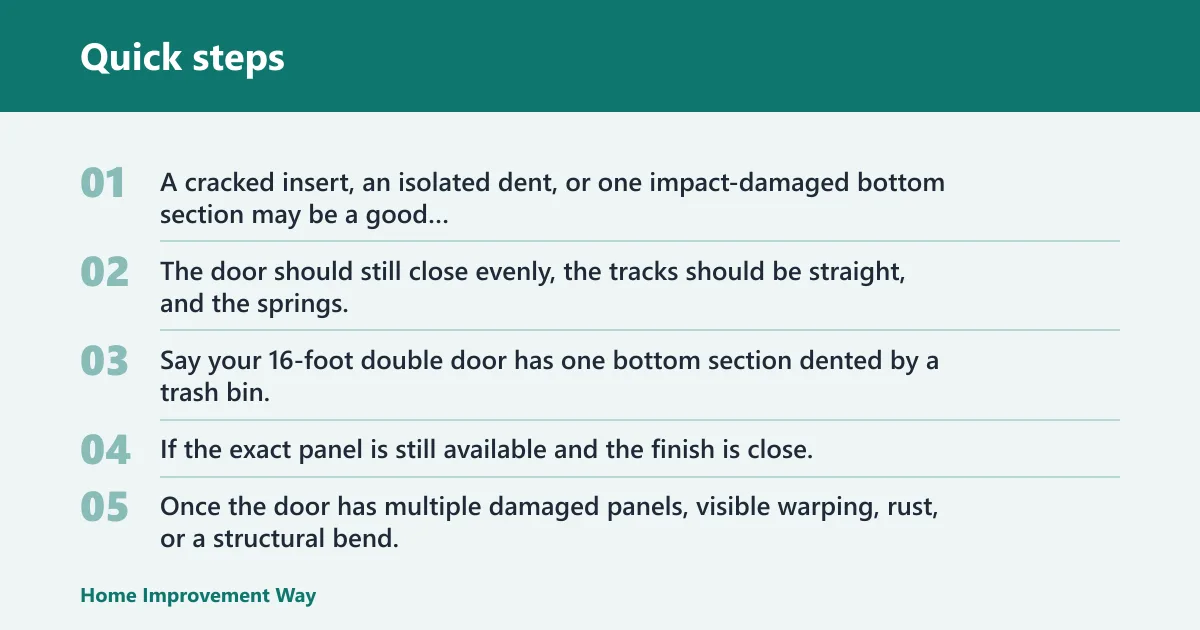

Can you replace just one garage door section?

Yes, but only when the damage is limited to one or two sections and the rest of the system is sound. Single-panel replacement is most practical on newer doors, roughly under 8–10 years old, because matching the profile, color, and construction is easier when the model is still in production.

When a partial repair makes sense

A cracked insert, an isolated dent, or one impact-damaged bottom section may be a good candidate for section replacement. The door should still close evenly, the tracks should be straight, and the springs, rollers, and opener should all be working normally.

Say your 16-foot double door has one bottom section dented by a trash bin, but the other panels are straight and the opener runs quietly. If the exact panel is still available and the finish is close, replacing that one section can be the cleanest fix.

When a partial repair starts to lose value

Once the door has multiple damaged panels, visible warping, rust, or a structural bend, the repair starts to look less like a fix and more like a patch. Even if one section can be ordered, the rest of the door may already be telling you that the system is aging out.

A common mistake is swapping out a damaged section without confirming the tracks and springs are still properly aligned for the rest of the door. If the frame or tracks are off, the new section may bind or wear unevenly, which can erase any savings.

How old is too old for a panel swap?

Age matters because matching gets harder as doors get older. A door under 8–10 years old is much more likely to have a compatible section available, while a door over 15 years old often tips toward full replacement. The typical service life is about 15 to 30 years, so age alone does not force replacement, but it changes the odds.

Under 8–10 years

Within this range, panel replacement is often straightforward if the damage is isolated. Models are more likely to still be in production, and the finish, embossment, and construction are easier to match.

Around 15 years and up

At this point, full replacement is usually the better long-term choice, especially if the door already has worn hardware or visible fade. Manufacturers regularly discontinue models, so an exact match can be hard to find even when the door still functions.

Suppose a 17-year-old insulated steel door has one cracked upper section after wind damage. If the rest of the door also shows fading and the rollers are noisy, a full replacement often makes more sense than trying to blend a single new panel into an aging system.

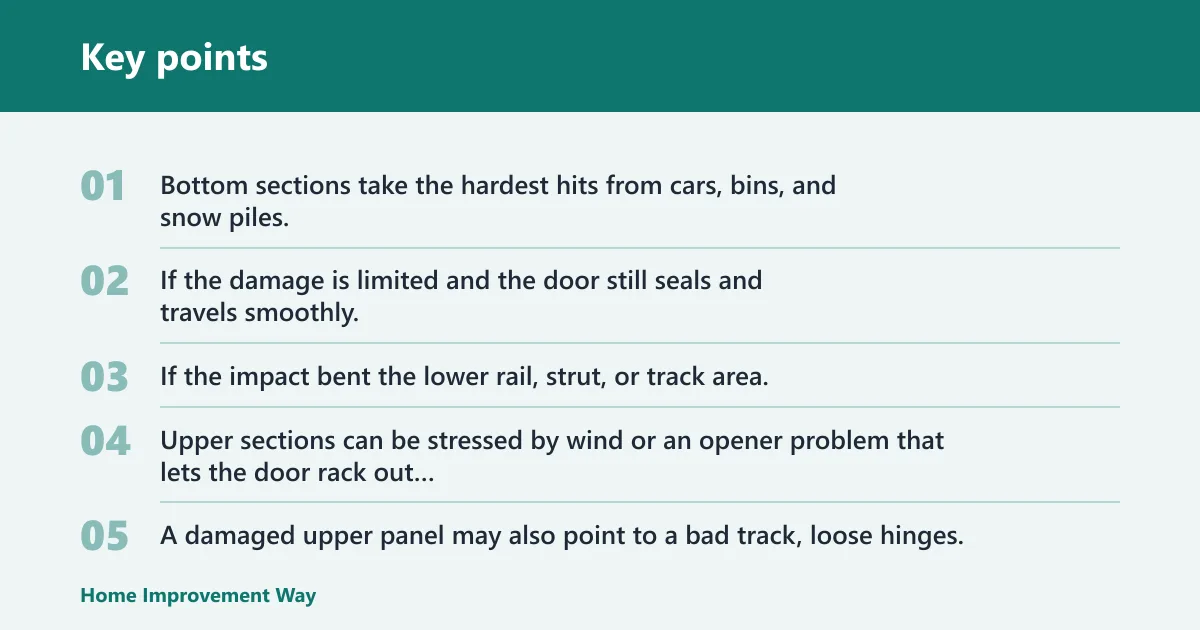

What damage means the whole door should go?

Cosmetic dents are not the same as structural damage. If the problem is only a shallow dent in one panel, section replacement may still be reasonable. If the damage includes warping, rust, bowed sections, or a bent frame member, the door is probably failing as a system, not as a single part.

Bottom-panel impact damage

Bottom sections take the hardest hits from cars, bins, and snow piles. If the damage is limited and the door still seals and travels smoothly, one section may be replaceable. If the impact bent the lower rail, strut, or track area, the repair scope is bigger than the visible dent.

Upper-panel wind damage

Upper sections can be stressed by wind or an opener problem that lets the door rack out of alignment. A damaged upper panel may also point to a bad track, loose hinges, or an opener that has been straining the door for some time.

Rust, rot, and bowed sections

Rust on steel and rot on composite or wood parts usually means the damage is not isolated. Bowed sections are especially important because they can signal frame stress or an opening that no longer sits square. In those cases, full replacement is often the cleaner path.

Panel swap or full replacement?

This decision matrix is meant to separate a true section-only problem from a larger system problem. Use the risk flags first, then read the recommended action. If about 3 or more risk flags are true, replace the whole door.

Door age	Number of damaged sections	Part availability	Hardware condition	Visible mismatch risk	Recommended action
Under 8–10 years	1	Still in production	Springs, rollers, tracks, and opener in good shape	Low	door section replacement
Under 10 years	1–2	Available, but finish may need blending	Minor wear only	Moderate	door section replacement
15+ years	1	Discontinued or hard to match	Worn or noisy	High	full door replacement
Any age	3+	Any status	Any wear level	Any risk	full door replacement
Any age	1–2	Not available or discontinued	Unknown or questionable	High	full door replacement

Red flags for hidden structural damage

• Bent struts on the damaged panel or nearby sections
• Bowed sections that do not lie flat in the track path
• An opening that is out of square
• Tracks that are dented, spread, or pulling away from the jamb
• Rollers that bind or leave uneven wear marks
• Springs that look overstressed, mismatched, or near failure
• An opener that strains, jerks, or reverses unexpectedly

Choose door section replacement if… / Choose full door replacement if…

Choose door section replacement if the door is relatively new, the damaged area is limited to one or two sections, the model is still available, and the springs, rollers, tracks, and opener are all in good condition. It is also the better fit when the replacement panel can match the profile, color, and construction closely enough that the result will not stand out.

Choose full door replacement if the door is over 15 years old, the model is discontinued, or the damage reaches 3+ panels. It is also the better call when you see warping, rust, bowed sections, bent struts, or hardware wear that would turn a panel swap into a short-lived repair.

Keep reading

• How to Replace Garage Door Hinges: A Step-by-Step Guide
• Best Plywood for Garage Door: Top Choices for Durability and Style

Frequently asked questions

Is it cheaper to replace one panel or the whole garage door?

One panel is usually cheaper upfront. But the true cost should include labor, matching work, paint or finish blending, and any hardware refresh needed to make the partial repair work. If those add-ons are high, full replacement can be better value.

When is a full garage door replacement better than a panel replacement?

Full replacement is usually better when the door is over 15 years old, when 3+ panels are damaged, or when the model is discontinued. It is also the stronger choice when springs, rollers, tracks, or the opener are worn enough that a section swap would leave the system weak.

How old can a garage door be before panel replacement is a bad idea?

Roughly under 8–10 years is the easier zone for panel replacement. Around 15 years and up, matching becomes harder and the rest of the system is more likely to be worn. Since typical service life is about 15 to 30 years, age should be weighed with condition, not treated alone.

What if the replacement panel doesn’t match the rest of the door?

Then the repair may still work mechanically, but it may look off because of fading, finish differences, or a discontinued embossment. That mismatch matters more when the door sits in front view or when the finish is already uneven. In those cases, full replacement often gives a cleaner result.

Does panel replacement fix hidden problems with springs or tracks?

No. A new section does not correct worn springs, bent tracks, bad rollers, or an opener that is already struggling. Those problems can make the door bind or wear unevenly after the repair, which is why hardware condition must be checked before any partial fix is approved.
